DC Audio 1000x4 Amplifier

DC-CS1000x4

Buy Now

Amplifier Description

The DC-SF1000x4 is a compact series amplifier capable of making 1,000 watts. Its High power 4 Channel amplifier. It has 4awg inputs and onboard clipping lights. Designed to make more power in less space.

Download Manual

Output Power (RMS)

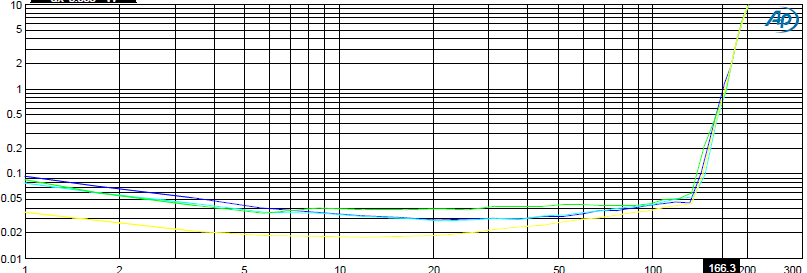

4 ohm 150Wx4 @ 14.4 Volts

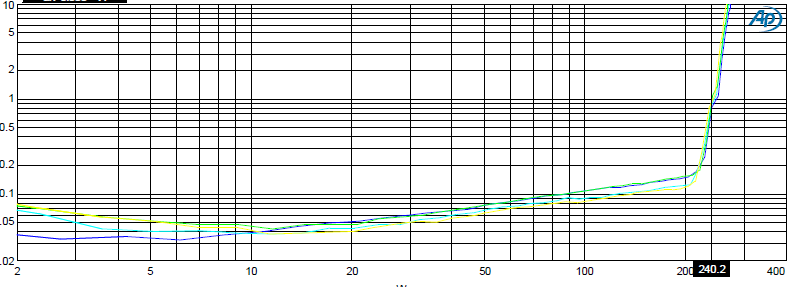

2 ohm 240Wx4 @ 14.4 Volts

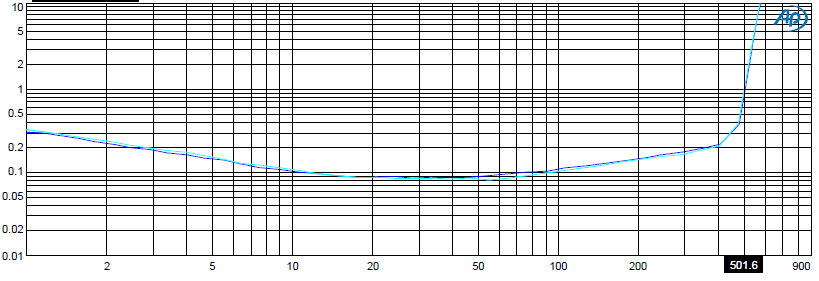

4ohm rms bridged power : 500W x 2

Key Features

• 2 ohm stable

• Variable low pass filter

• Variable High pass filter

• Full Range Output

• 9-16 Volts Capable

• Onboard clip light

AMP SPECS:

    DC Amp Model:
    CS-1000x4

    Input Sensitivity
    6V~0.2V

    Frequency Response
    10Hz~31KHz

    24dB / Octave Crossover
    YES

    High / Low Pass
    50Hz ~ 500Hz

    Subsonic Filter
    NO

    Bass Boost @45hz
    NO

    Phase Shift
    NO

    Remote Control
    NO

    Clip Indicator
    Yes

    Signal to Noise Ratio
    dB105

    Damping Factor
    100<

    THD @ 4ohms
    Less than 0.1%

    Fuse Rating
    External 100 amp

    LED Status Lights
    Power/Protect/Clip

    Master/Slave
    NO

    Heatsink Length
    9.44"/240mm

    Heatsink Width
    4.72"/120mm

    Heatsink Height
    1.96"/50.0mm

DC Amp Model:	CS-1000x4
Input Sensitivity	6V~0.2V
Frequency Response	10Hz~31KHz
24dB / Octave Crossover	YES
High / Low Pass	50Hz ~ 500Hz
Subsonic Filter	NO
Bass Boost @45hz	NO
Phase Shift	NO
Remote Control	NO
Clip Indicator	Yes
Signal to Noise Ratio	dB105
Damping Factor	100<
THD @ 4ohms	Less than 0.1%
Fuse Rating	External 100 amp
LED Status Lights	Power/Protect/Clip
Master/Slave	NO
Heatsink Length	9.44"/240mm
Heatsink Width	4.72"/120mm
Heatsink Height	1.96"/50.0mm
