DC Audio XL Elite Subwoofers

DC Audio XL-Elite

Buy Now

Subwoofer Description

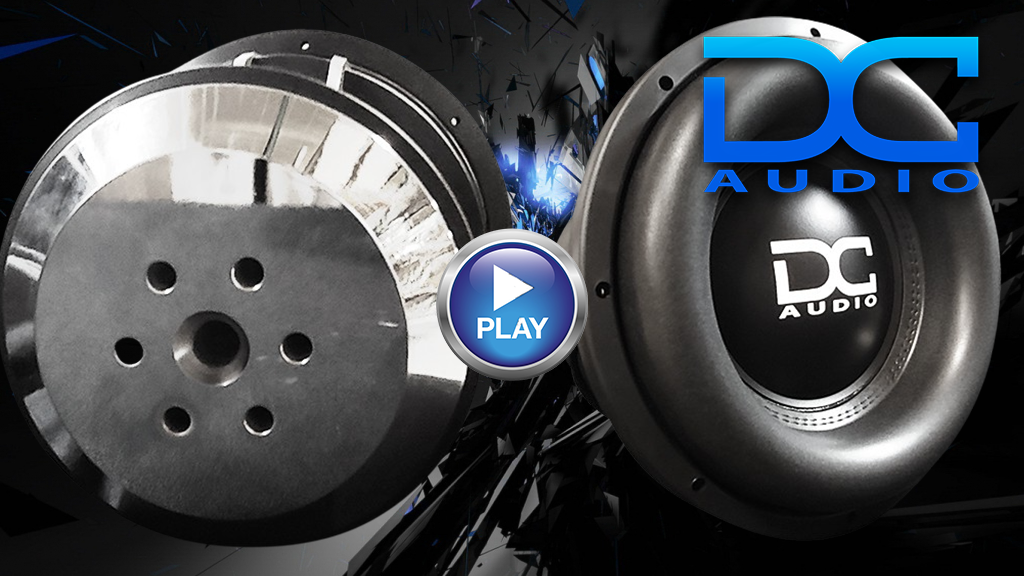

The XL ELITE is an Evolution of our #1 Selling XL Subwoofer line. We have redesigned the motor giving it a fresh new look, Added a pole vent and larger magnets, FEA optimized it and mated it with the DC Frame using 10 inch spiders.

The sub came from demand. XL style motor, 3 inch 8 layer coil, 10 inch spiders and the “famous for its performance and good looks” DC Frame in 12,15 and 18!!

Key Features

• Extremely rigid non-pressed paper cone assembly

• Multilayered polymer foam surround

• Polypropylene dust cover with DC logo

• Quad 10"OD Spiders

• Dual Extra heavy duty interweaved tinsel lead wire

• Cast Heavy Duty DC Aluminum black & Grind frame / no invert mount

• FEA analyzed and optimized motor assembly – Fully CNC machined

• Rubber mounting gasket

• 8 Awg OFC Direct Leads

• Dual 0.7, 1.0, 1.4 or 2 ohm 3" 8 Layer Hi-temp Aluminum Coil

• Rubber magnet cover

T/S Parameters

    M4 XL-Elite Subwoofer
    12"
    15"
    18"



    Mounting Depth
    9.75"
    11"
    12"


    Mounting Hole Diameter
    11.15"
    14.25"
    16.9"


    Outside Driver Diameter
    12.5"
    15.7"
    18.5"


    VC Diameter
    3.0"
    3.0"
    3.0"


    Displacement
    .19 ft³
    .23 ft³
    .26 ft³


    Power Handling RMS
    2200
watts
    2200
watts
    2200
watts


    Power Handling PEAK
    4400
watts
    4400
watts
    4400
watts


    Ohm Options
    d1/d2/d4
    d1/d2/d4
    d1/d2/d4


    Sd
    494 cm²
    791 cm²
    1159 cm²


    Vas
     22.36 L
    00.00 L
    129.16 L


    Cms
    0.07 Mm/n
    0.06 Mm/n
    0.06 Mm/n


    Mms
     332.5 g
    367.4 g
    534.19 g


    Fs
     31.63 Hz
    30.1 Hz
    27.85 Hz


    Bl
    24.16 N/A
    23.73 N/A
    26.49 N/A


    Re
    4.16 Ohm
    1.8 Ohm
    4.66 Ohm


    Le
     5.5 mH
    0.0 mH
    4.4 mH


    Qms
    6.20
    6.31
    8.27


    Qes
    0.47
    0.37
    0.62


    Qts
    0.43
    0.35
    0.57


    Xmax
    34mm
    34mm
    34mm


    Ref SPL @1 watt
    0.00 db
    90.3db
    88.25db


    Suggest Sealed Box
    1.0 ft³
    2.0 ft³
    3.5 ft³


    Suggested Ported Box
    1.5 ft³
    3.25 ft³
    5.5 ft³


M4 XL-Elite Subwoofer	12"	15"	18"
Mounting Depth	9.75"	11"	12"
Mounting Hole Diameter	11.15"	14.25"	16.9"
Outside Driver Diameter	12.5"	15.7"	18.5"
VC Diameter	3.0"	3.0"	3.0"
Displacement	.19 ft³	.23 ft³	.26 ft³
Power Handling RMS	2200 watts	2200 watts	2200 watts
Power Handling PEAK	4400 watts	4400 watts	4400 watts
Ohm Options	d1/d2/d4	d1/d2/d4	d1/d2/d4
Sd	494 cm²	791 cm²	1159 cm²
Vas	22.36 L	00.00 L	129.16 L
Cms	0.07 Mm/n	0.06 Mm/n	0.06 Mm/n
Mms	332.5 g	367.4 g	534.19 g
Fs	31.63 Hz	30.1 Hz	27.85 Hz
Bl	24.16 N/A	23.73 N/A	26.49 N/A
Re	4.16 Ohm	1.8 Ohm	4.66 Ohm
Le	5.5 mH	0.0 mH	4.4 mH
Qms	6.20	6.31	8.27
Qes	0.47	0.37	0.62
Qts	0.43	0.35	0.57
Xmax	34mm	34mm	34mm
Ref SPL @1 watt	0.00 db	90.3db	88.25db
Suggest Sealed Box	1.0 ft³	2.0 ft³	3.5 ft³
Suggested Ported Box	1.5 ft³	3.25 ft³	5.5 ft³
