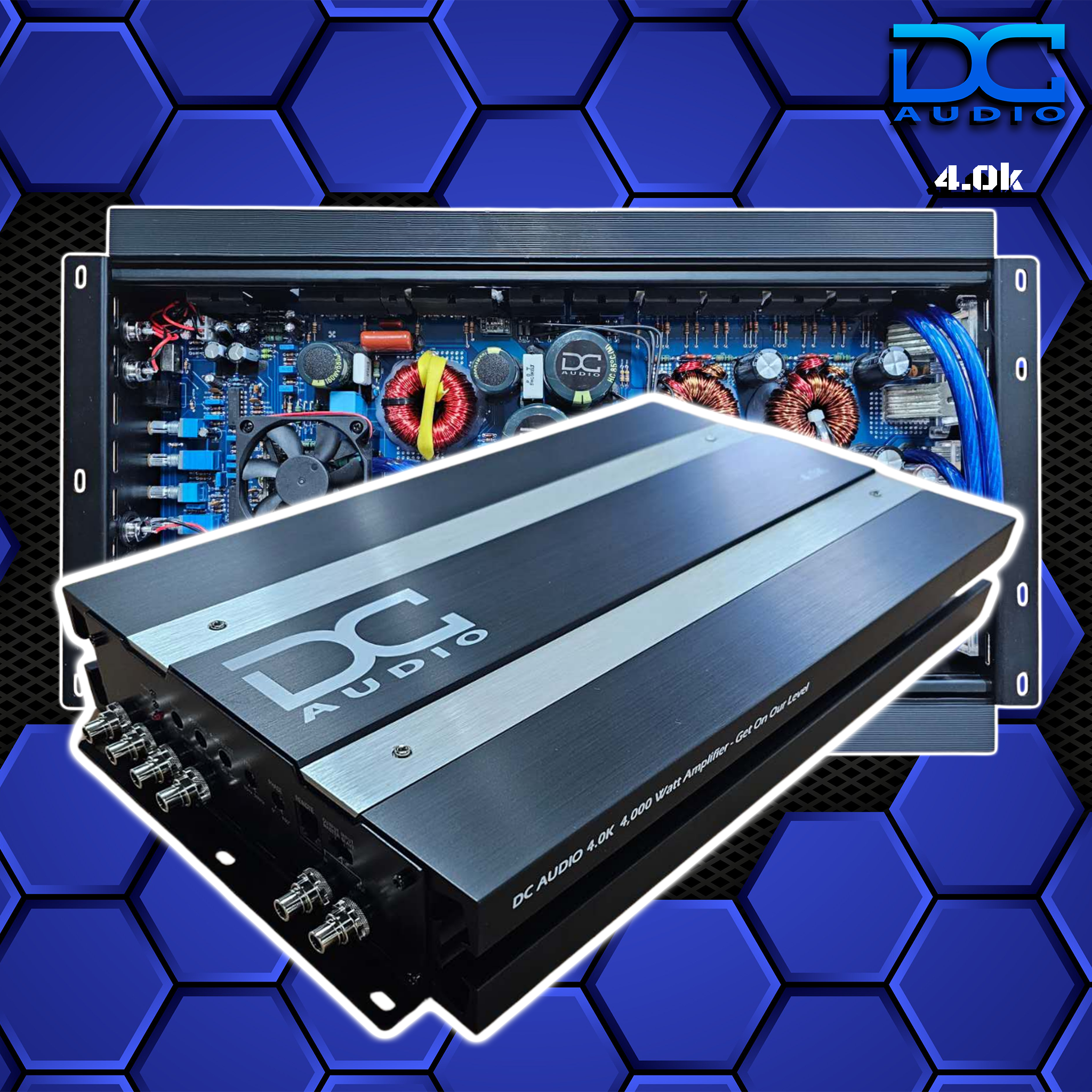

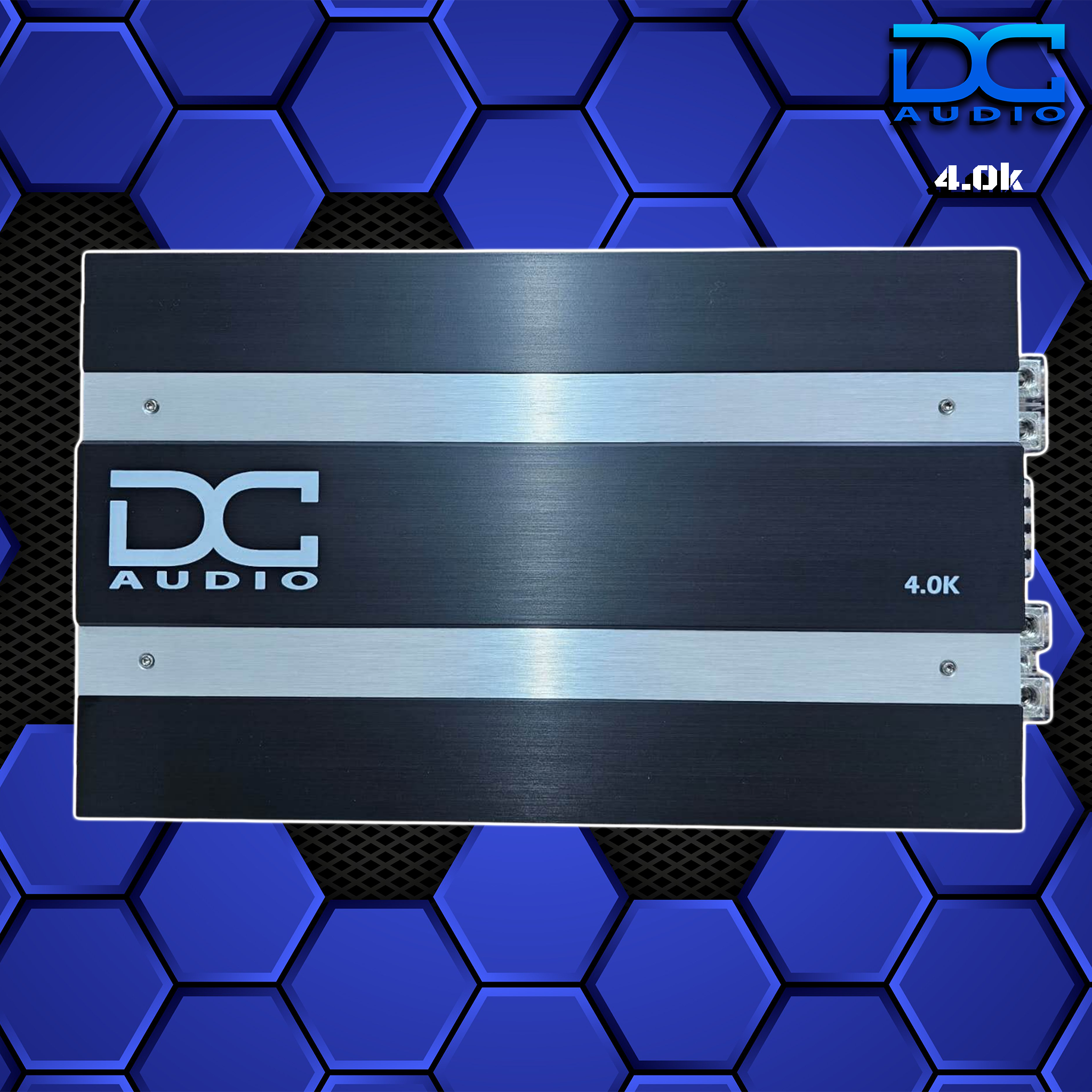

DC Audio 4.0k
Amplifier Description
The 4.0kw competition series amplifier is a 4,000 watt mono block. It is capable of running up to 16.2 volts for up to 0,000 watts. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when strapped.

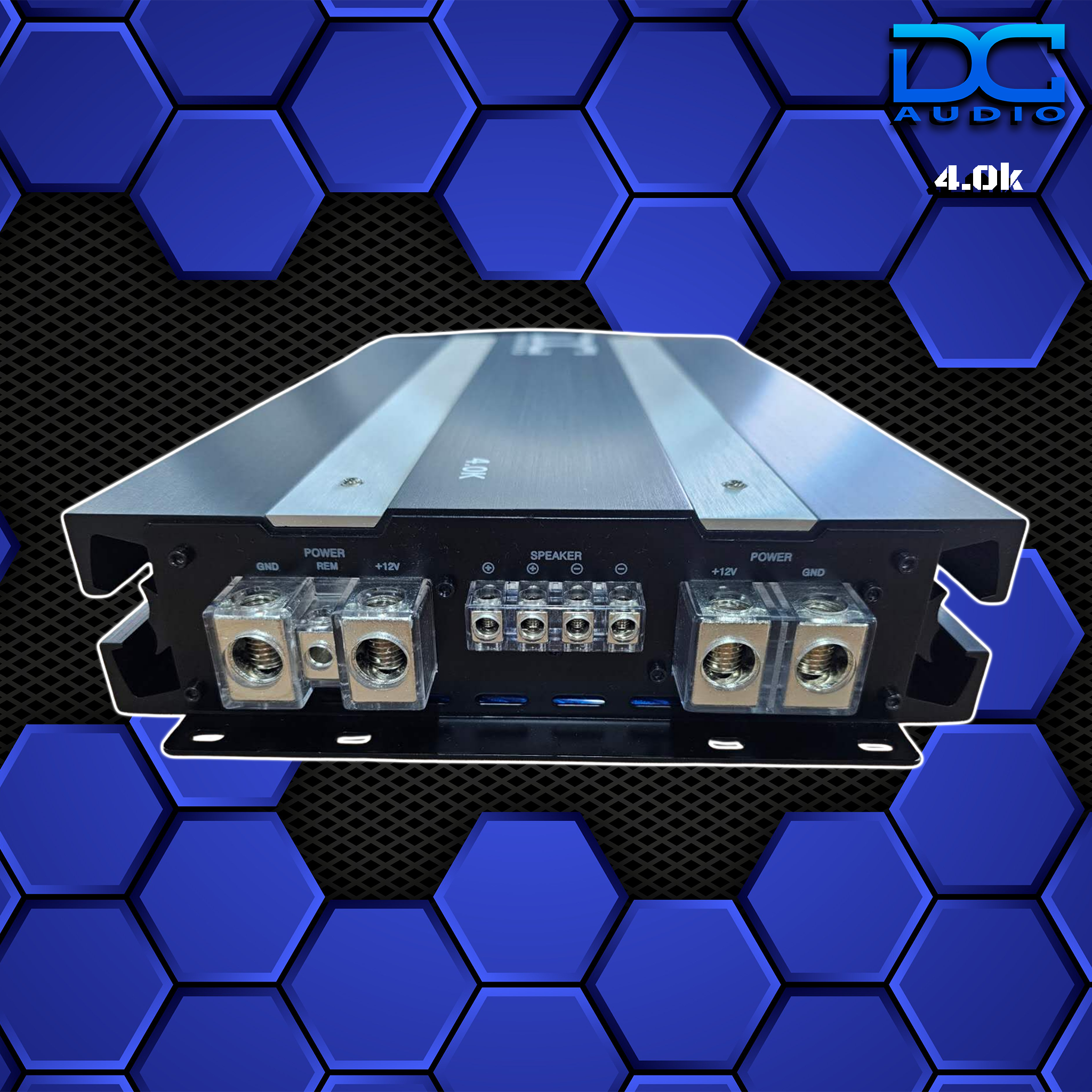

It comes with a bass knob and a clipping indicator. For power inputs it will accept 0 awg for power and 0 awg for ground.
Output Power (RMS)
4 ohm 1,00Wx1 @ 14.4 Volts
2 ohm 2,000Wx1 @ 14.4 Volts
1 ohm mono 4,000x1 @ 14.4 Volts
1 ohm mono 5,000x1 @ 16.2 Volts
Key Features
1 ohm stable
Variable low pass filter
Variable subsonic filter
Variable bass boost
Wired Bass Knob remote control W/ Clip light
RCA Pass Thru
Linkable
Tiffany Style RCA Jacks
Recommended for installation :
Upgraded Alternator or 220 amps of charging power
Upgraded under hood Battery
450ah of AGM Batteries in the trunk or 60ah Lithium
Dash mounted voltage meter
0 Awg OFC power and ground
Power & ground runs from front to back batteries.
DO NOT mount to subwoofer box. (will void warranty)

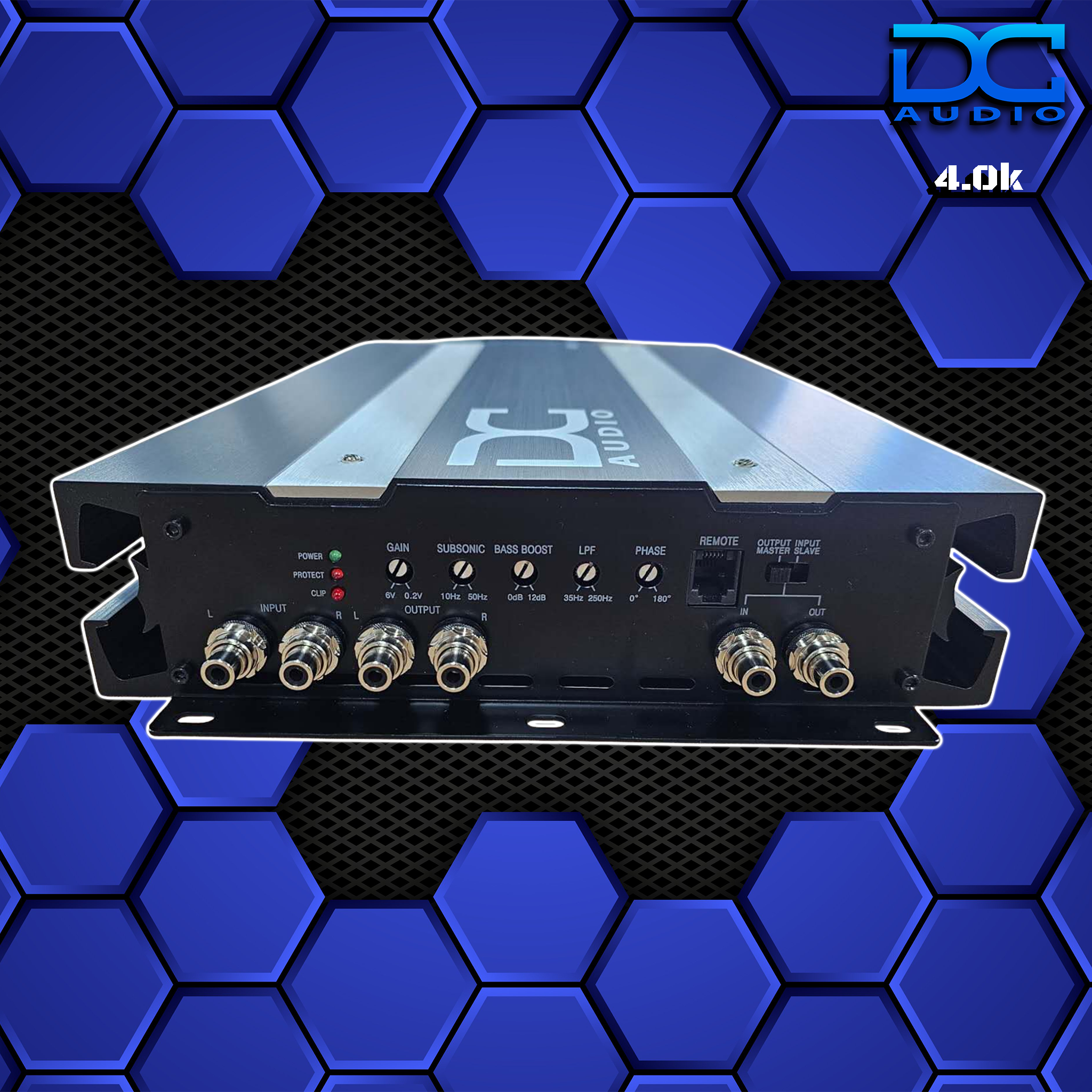

AMP SPECS:
| DC Amp Model: | 4.0k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 20Hz~250Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB000 |
| Damping Factor | 000< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 400 amp |
| LED Status Lights | Power and Protect |
| Master/Slave | YES |
| Heatsink Length | 15.74"/400mm |
| Heatsink Width | 9.38"/66mm |
| Heatsink Width | 2.35"/59.6mm |
Overview Video
Check out what the 4.0k Amplifier from DC Audio is all about
