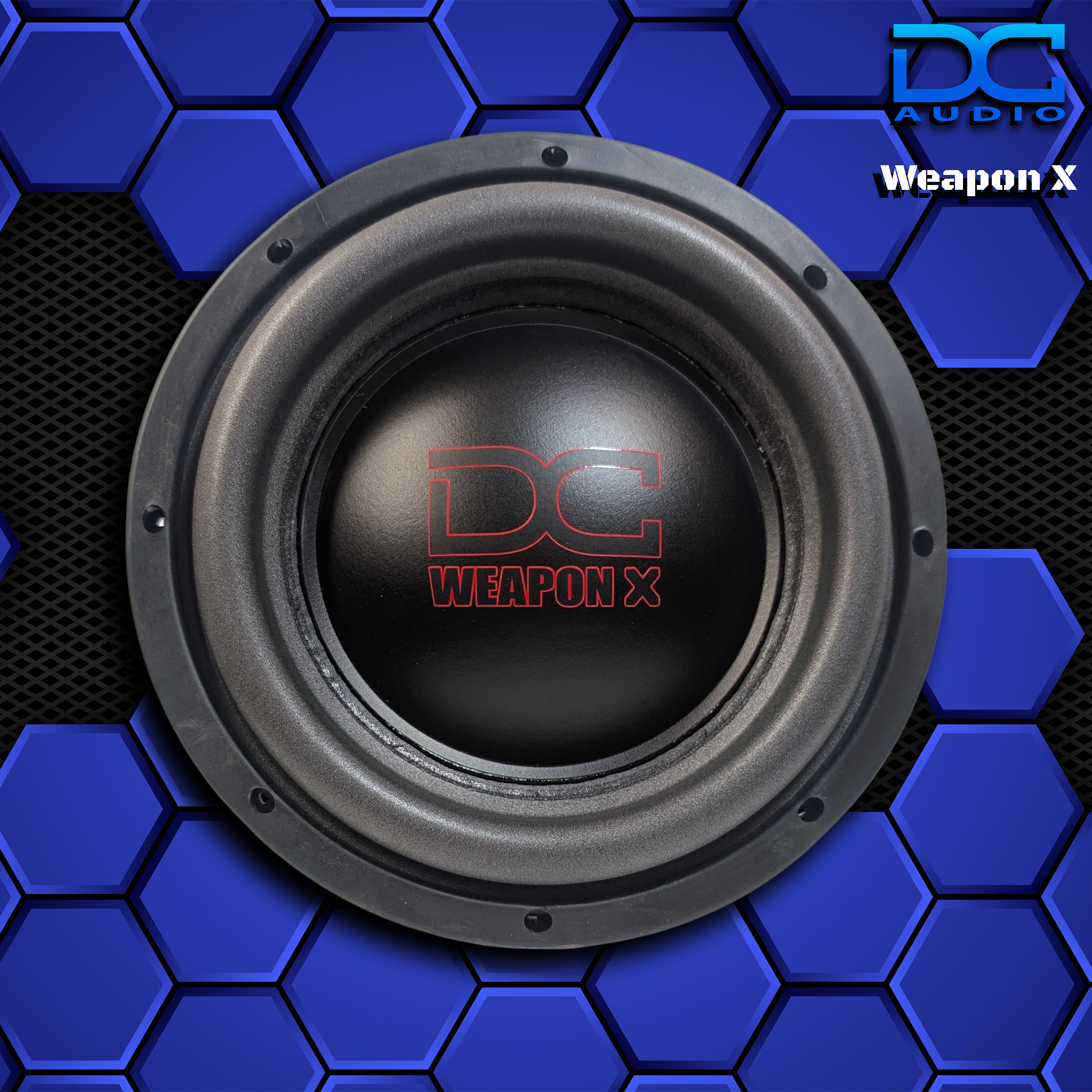

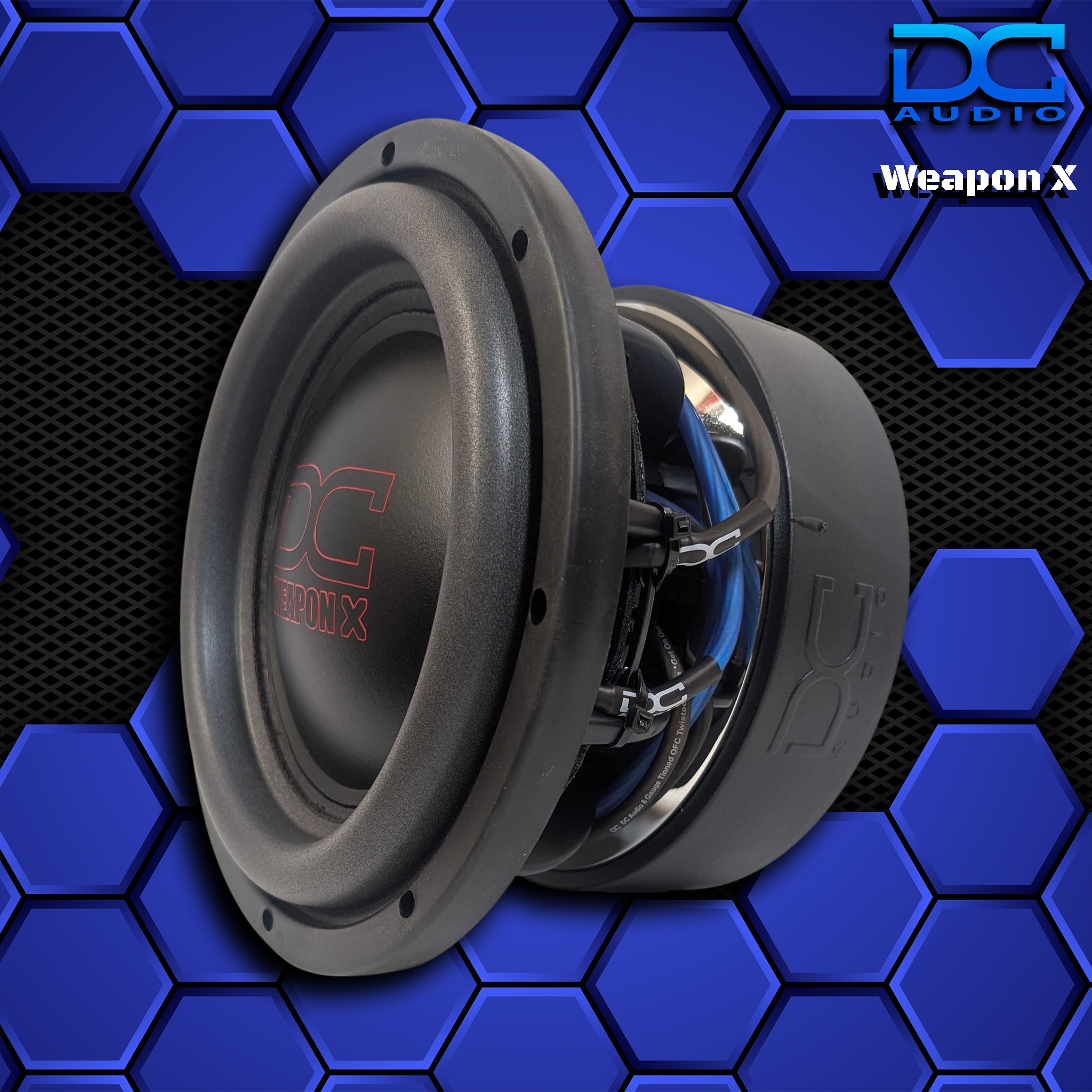

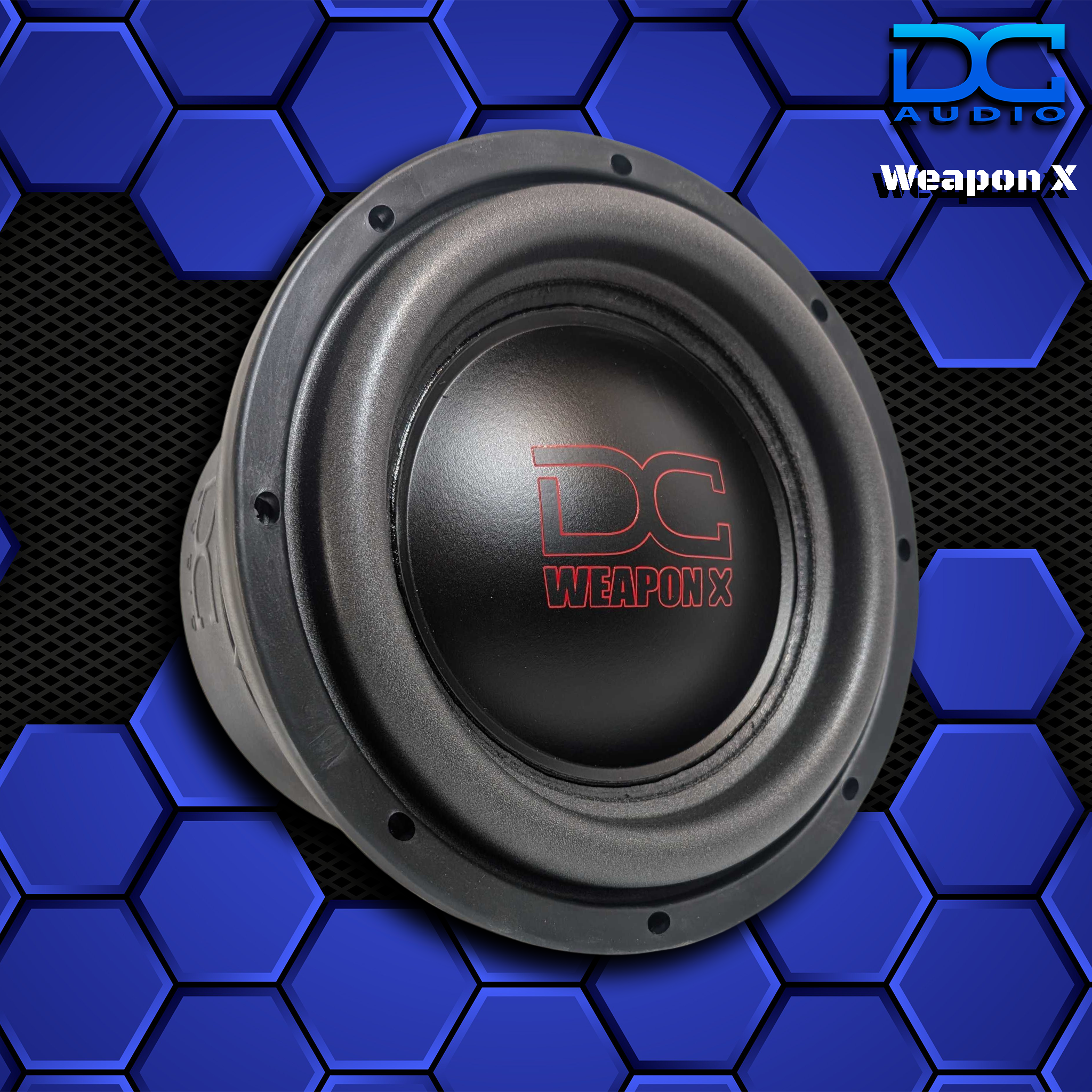

DC Audio Weapon-X Subwoofer
**HAND BUILT IN THE USA**
Subwoofer Description
If you want to dominate the winner’s circle in bagger audio competitions, this is the subwoofer you’ve been waiting for. After over a year of development and fine-tuning, it’s finally ready to hit the streets. This isn’t just another subwoofer—it delivers a level of performance you’ve never experienced on a bike before. We’re talking about a true game-changer. This is next-level bass, engineered to set you apart.
Key Features
• Polypropylene dust cover with DC logo
• Custom Oversized Spiders
• Dual Extra heavy duty interweaved tinsel lead wire
• Cast aluminum black frame / no invert mount
• FEA analyzed and optimized motor assembly – Fully CNC machined
• Rubber mounting gasket
• 3" Hi-temp Voice Coil
• Dual 220mm Y35 Slugs
Motor Boot Coming Soon
T/S Parameters
| RS-Subwoofer | 10" | 12" |
|---|---|---|
| Mounting Depth | 6.25" | 7" |
| Mounting Hole Diameter | 9.35" | 11" |
| Outside Driver Diameter | 11" | 12.5" |
| VC Diameter | 3.0" | 3.0" |
| Displacement | .16 ft³ | .17 ft³ |
| Power Handling rms/peak | 1800/3600 | 1800/3600 |
| Ohm Options | d1 | d1 |
| Sd | 324.29 cm² | 494.81 cm² |
| Vas | 0.00 L | 0.00 |
| Cms | 0.00Mm/n | 0.00 Mm/n |
| Mms | 000 g | 000 g |
| Fs | 00 Hz | 00 Hz |
| Bl | 00 N/A | 00 N/A |
| Re | 0 Ohm | 0 Ohm |
| Le | 0 mH | 0 mH |
| Qms | 0 | 0 |
| Qes | 0.00 | 0.00 |
| Qts | 0.00 | 0.00 |
| Xmax | 24mm | 24mm |
| Ref SPL @1 watt | 00 db | 00 db |
| Suggest Sealed Box | .75 ft³ | 1.0 ft³ |
| Suggested Ported Box | 1.0 ft³ | 1.5 ft³ |
Overview Video
Check out what the Weapon X Subwoofer from DC Audio is all about
