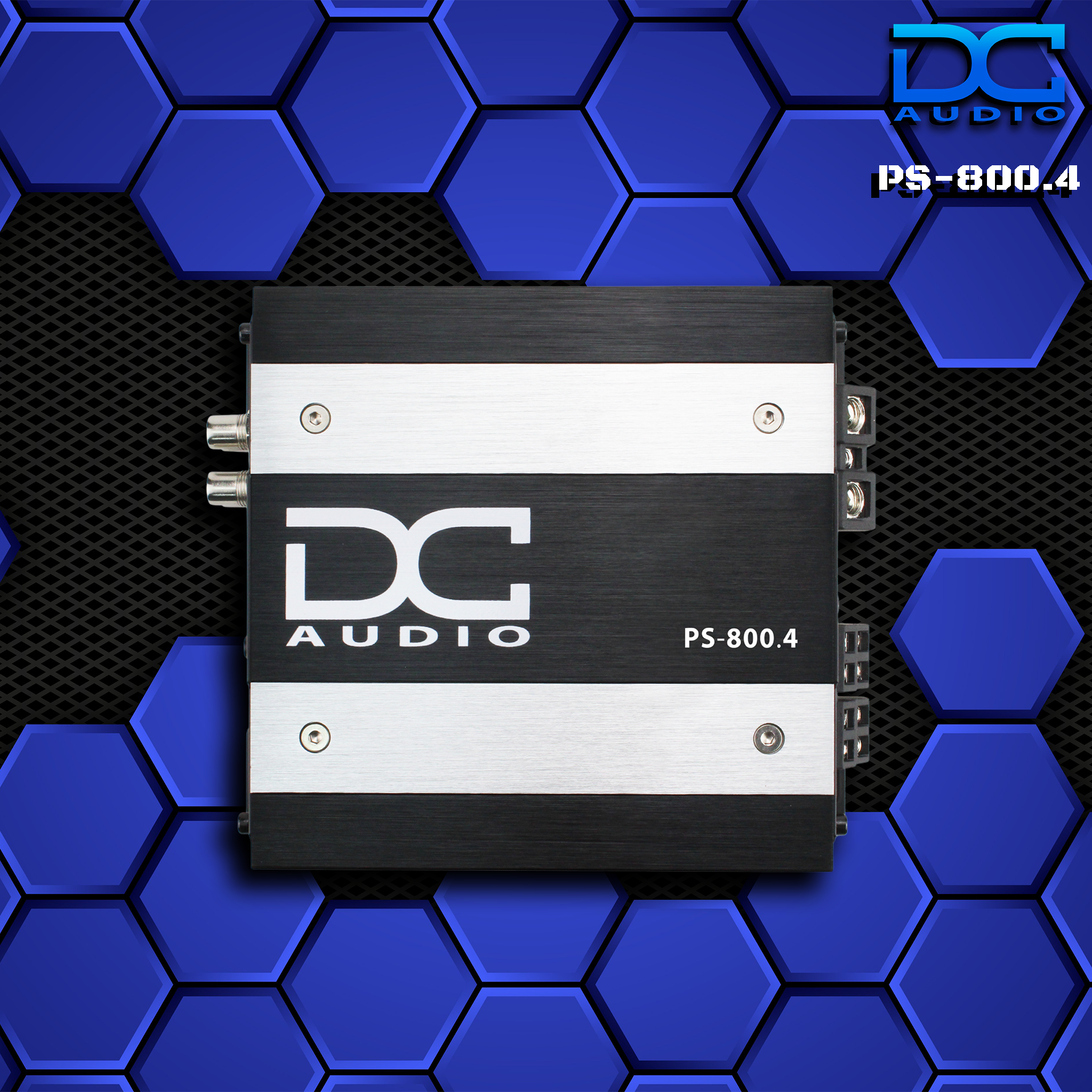

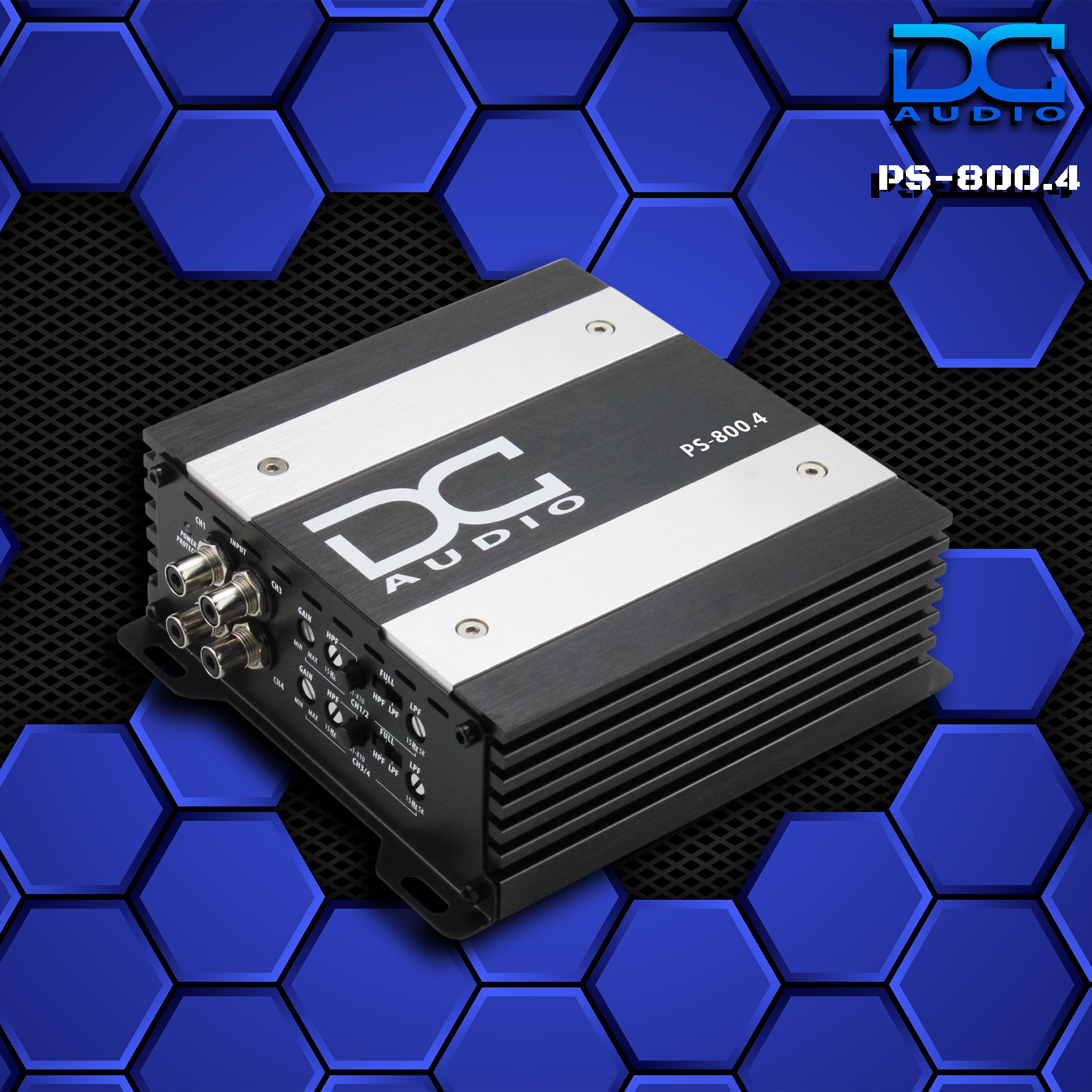

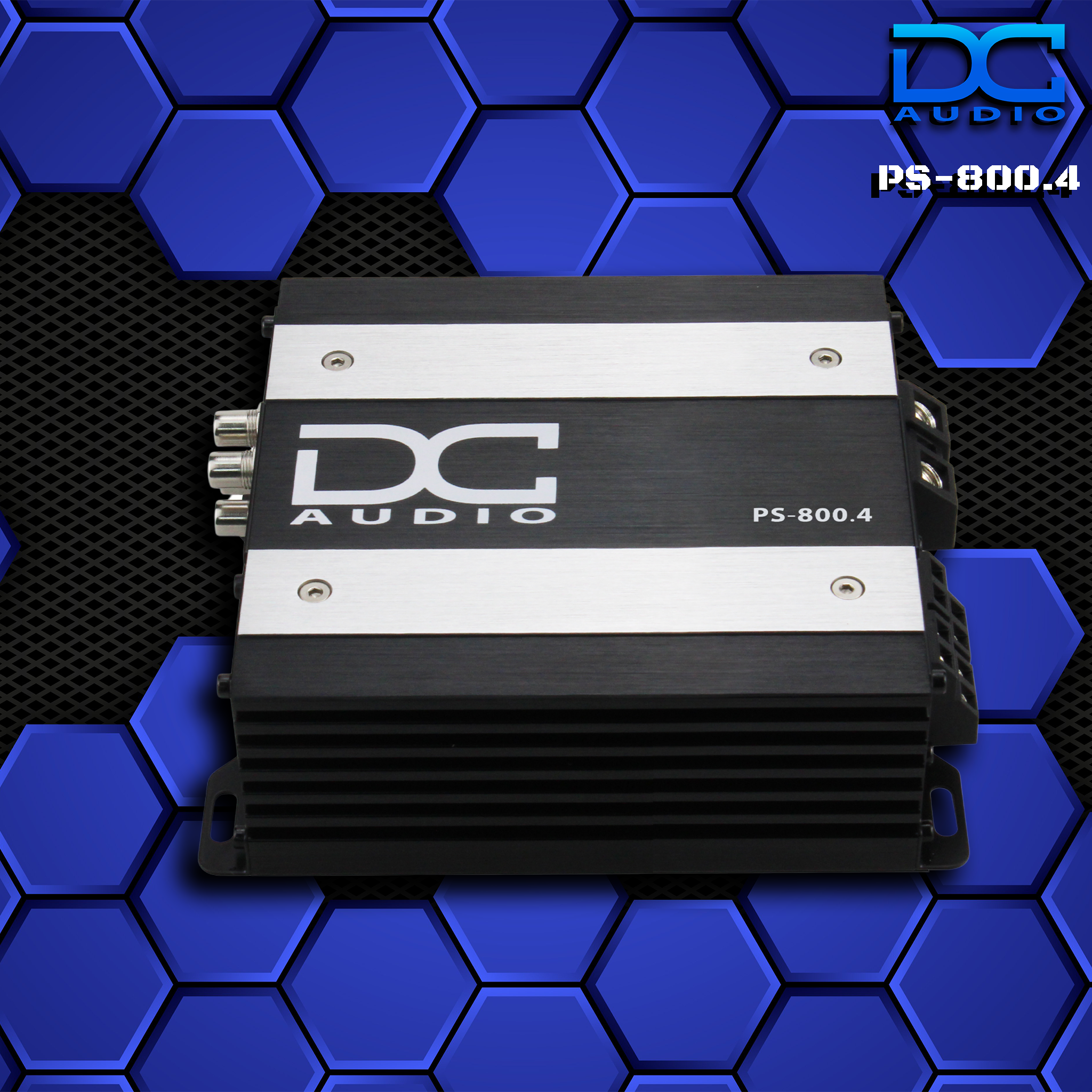

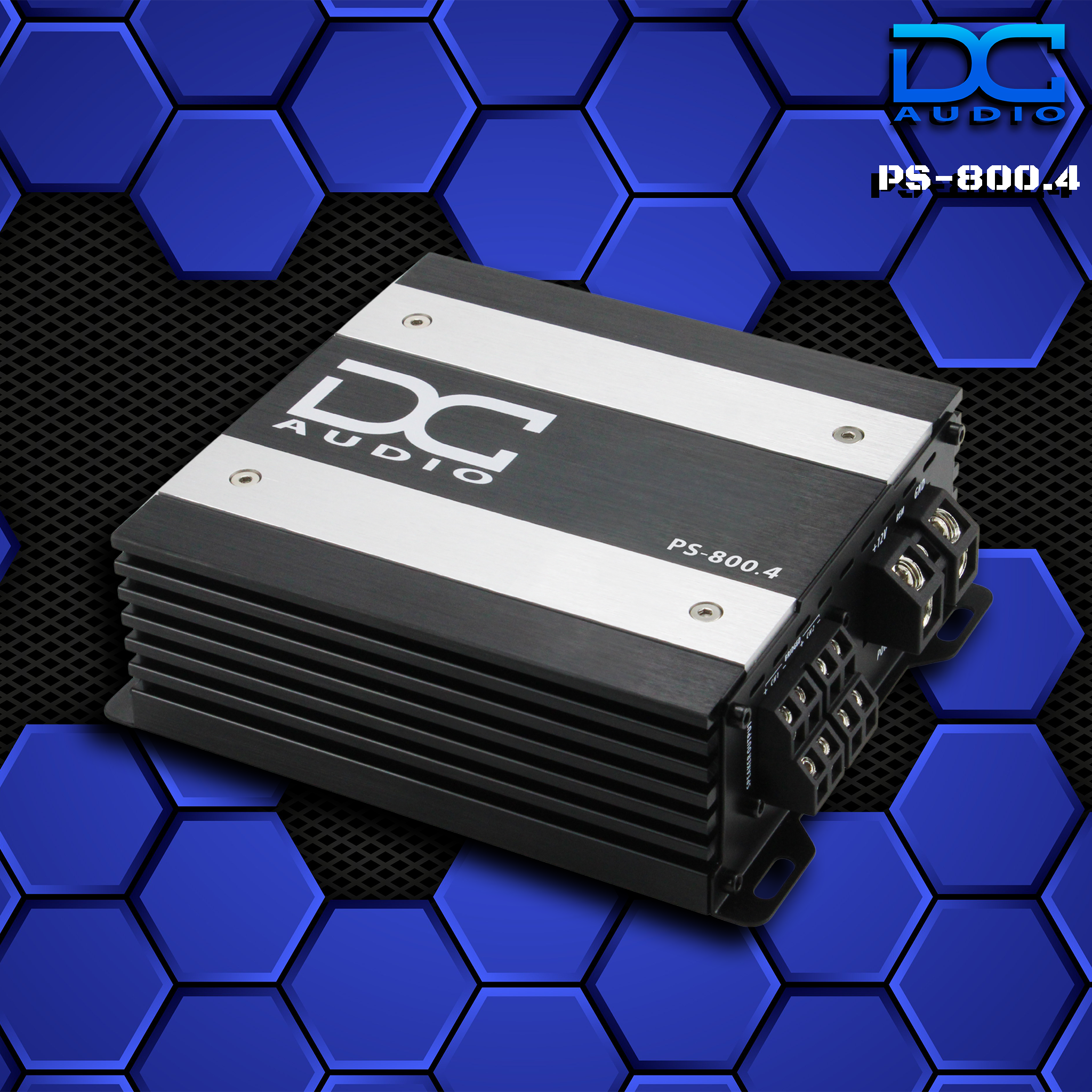

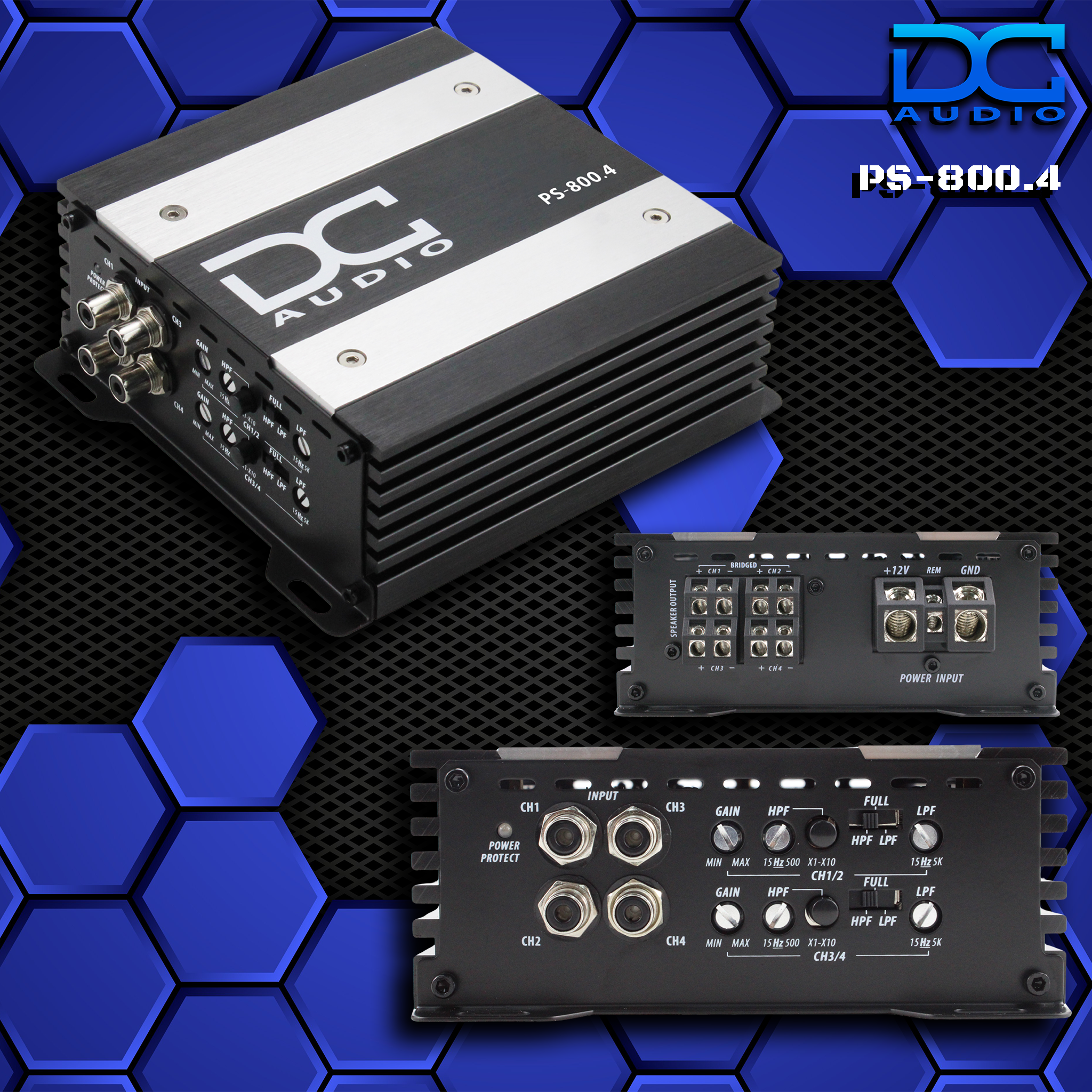

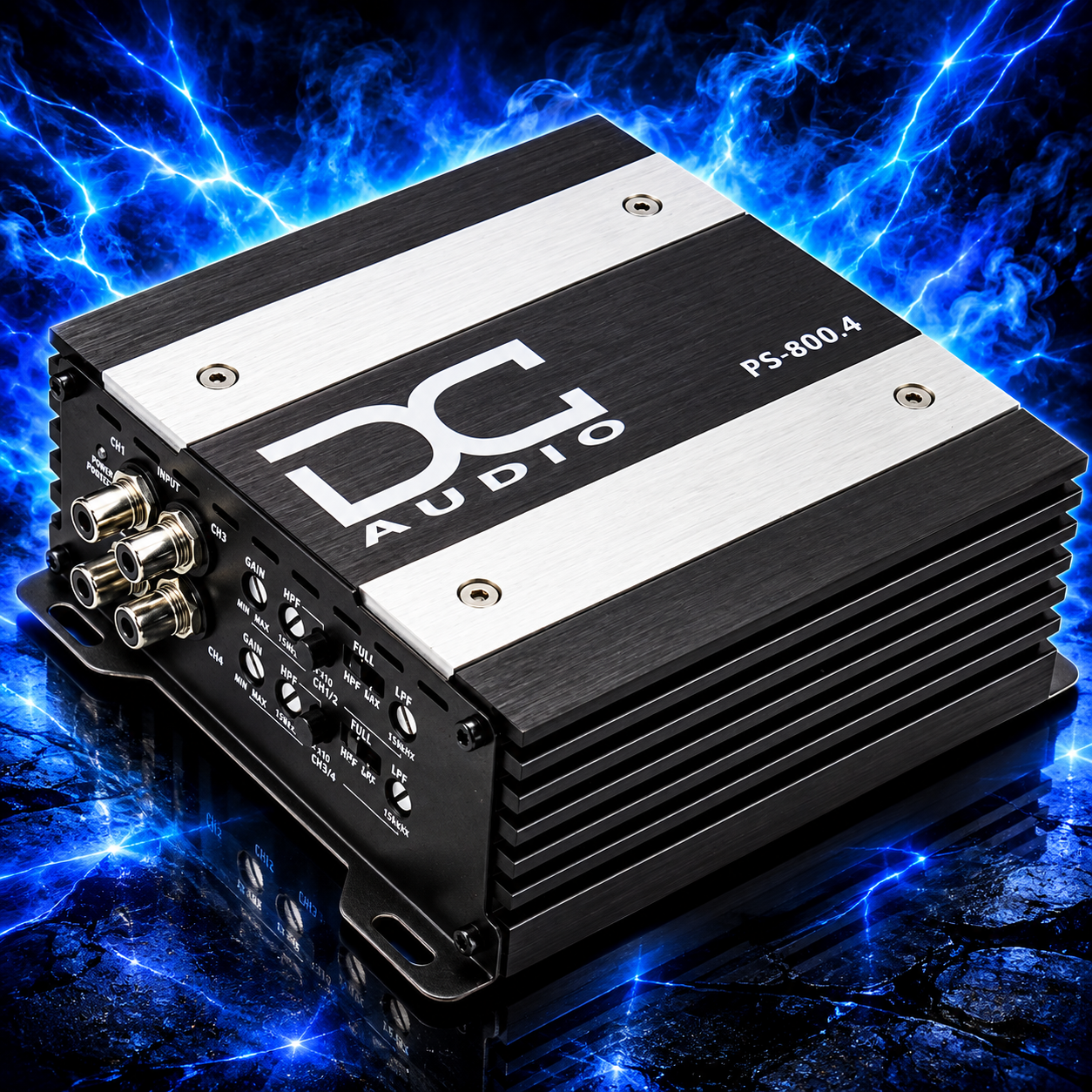

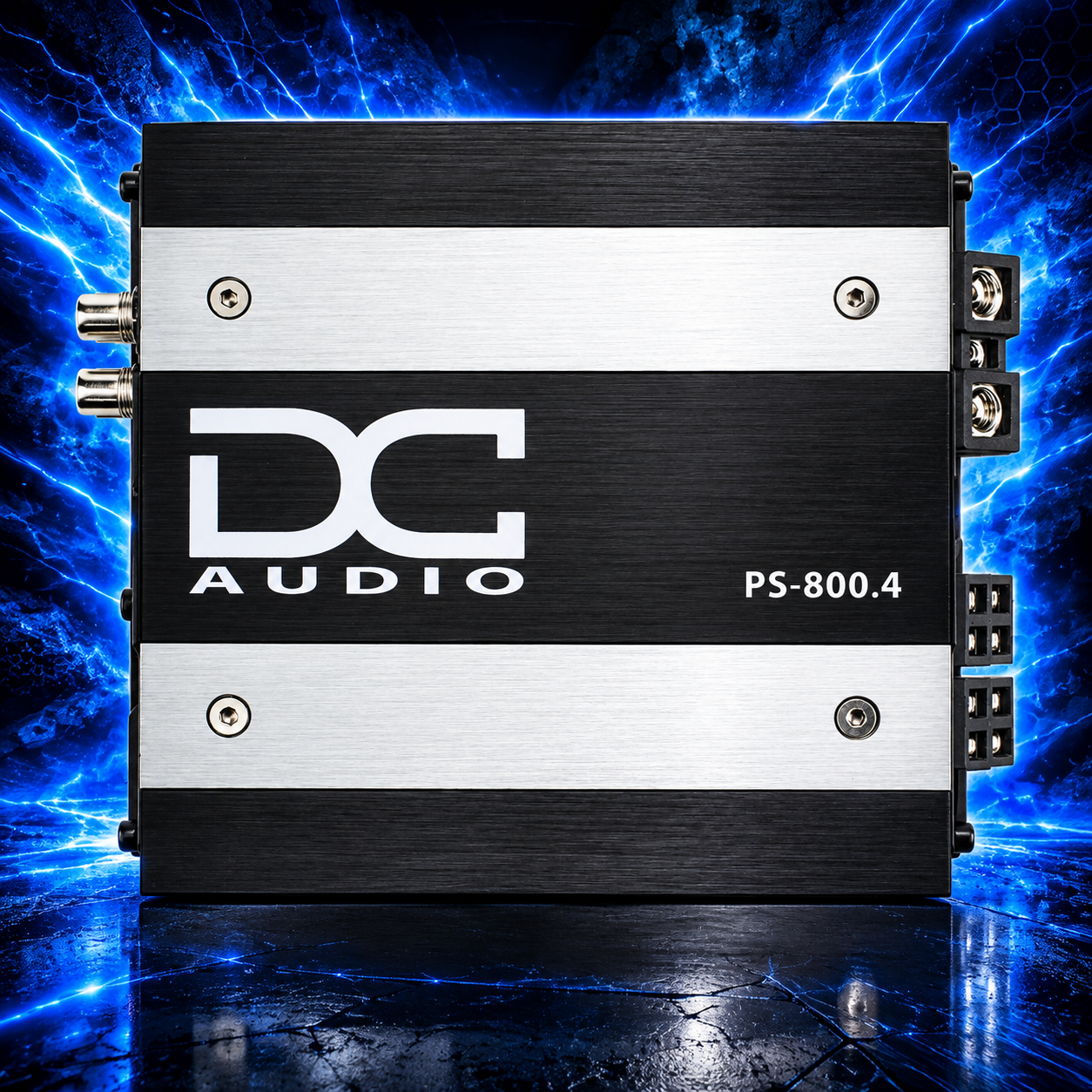

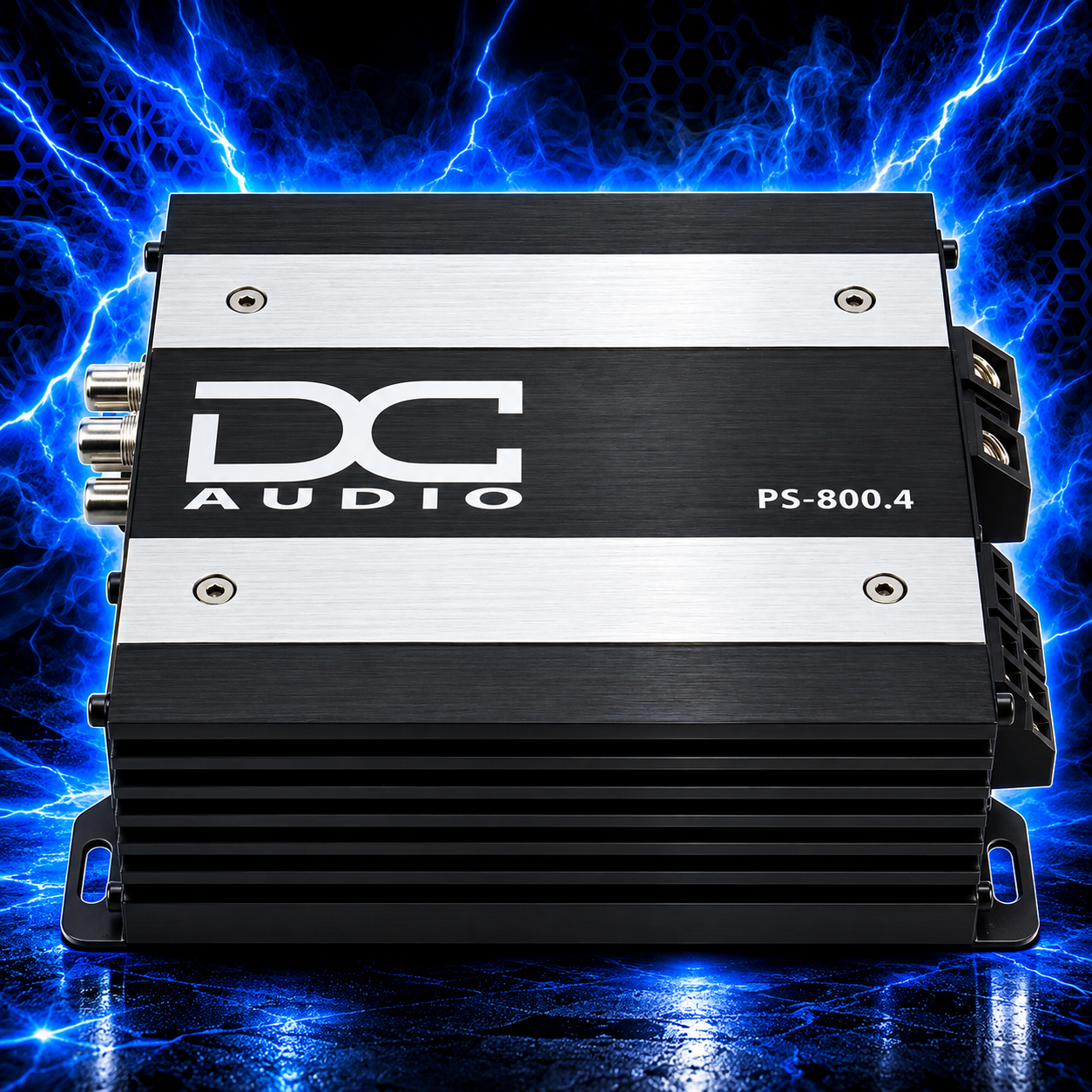

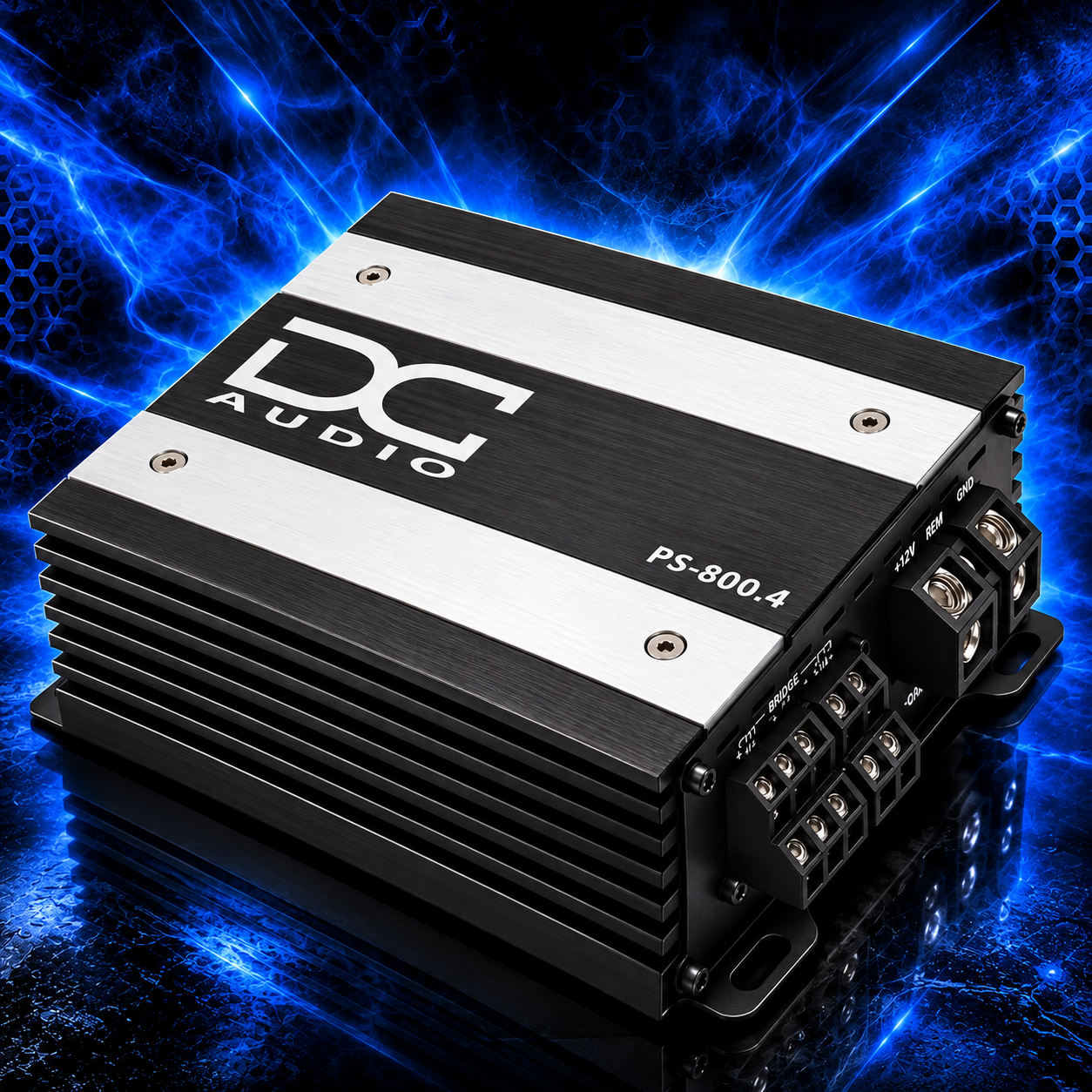

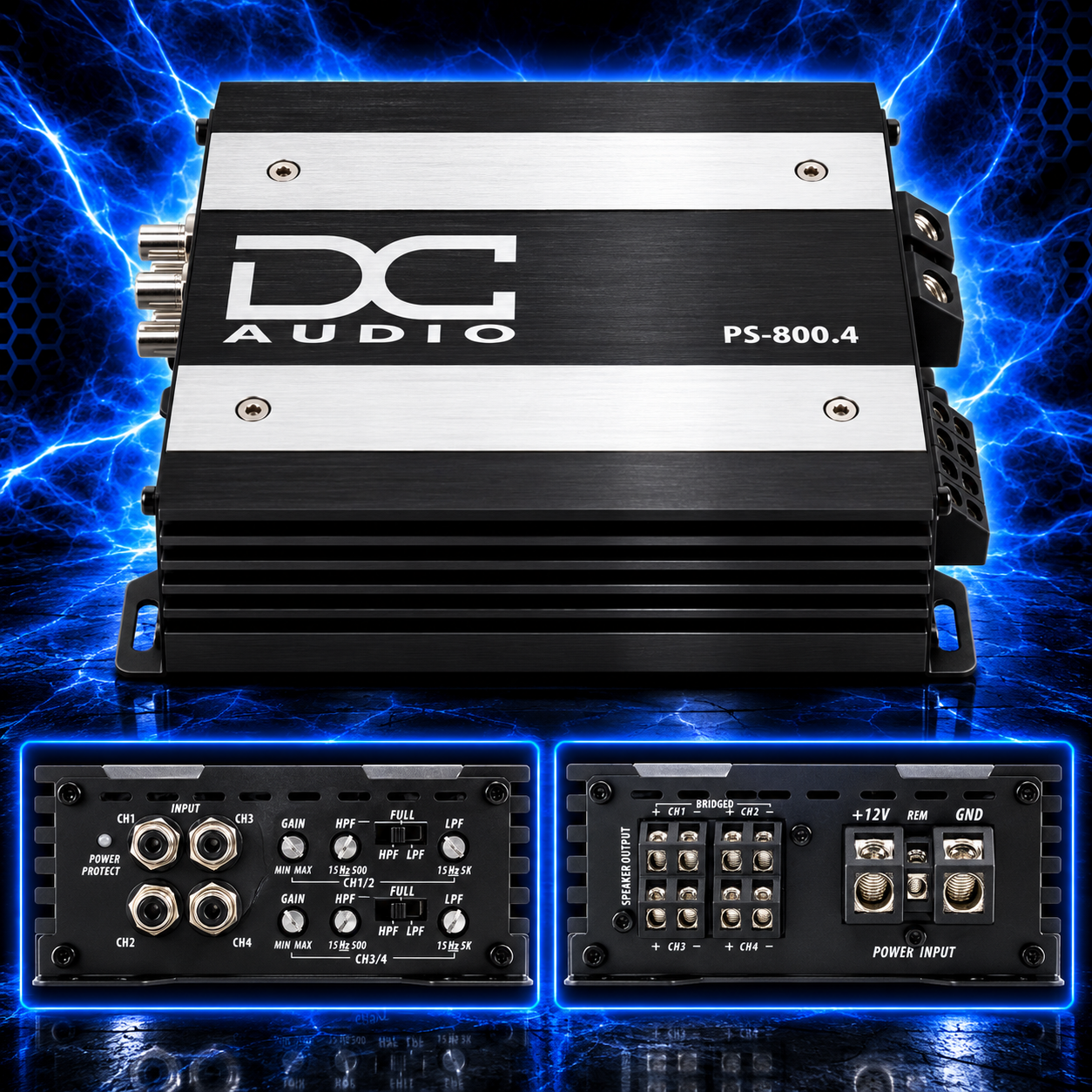

DC-PS800x4
Amplifier Description

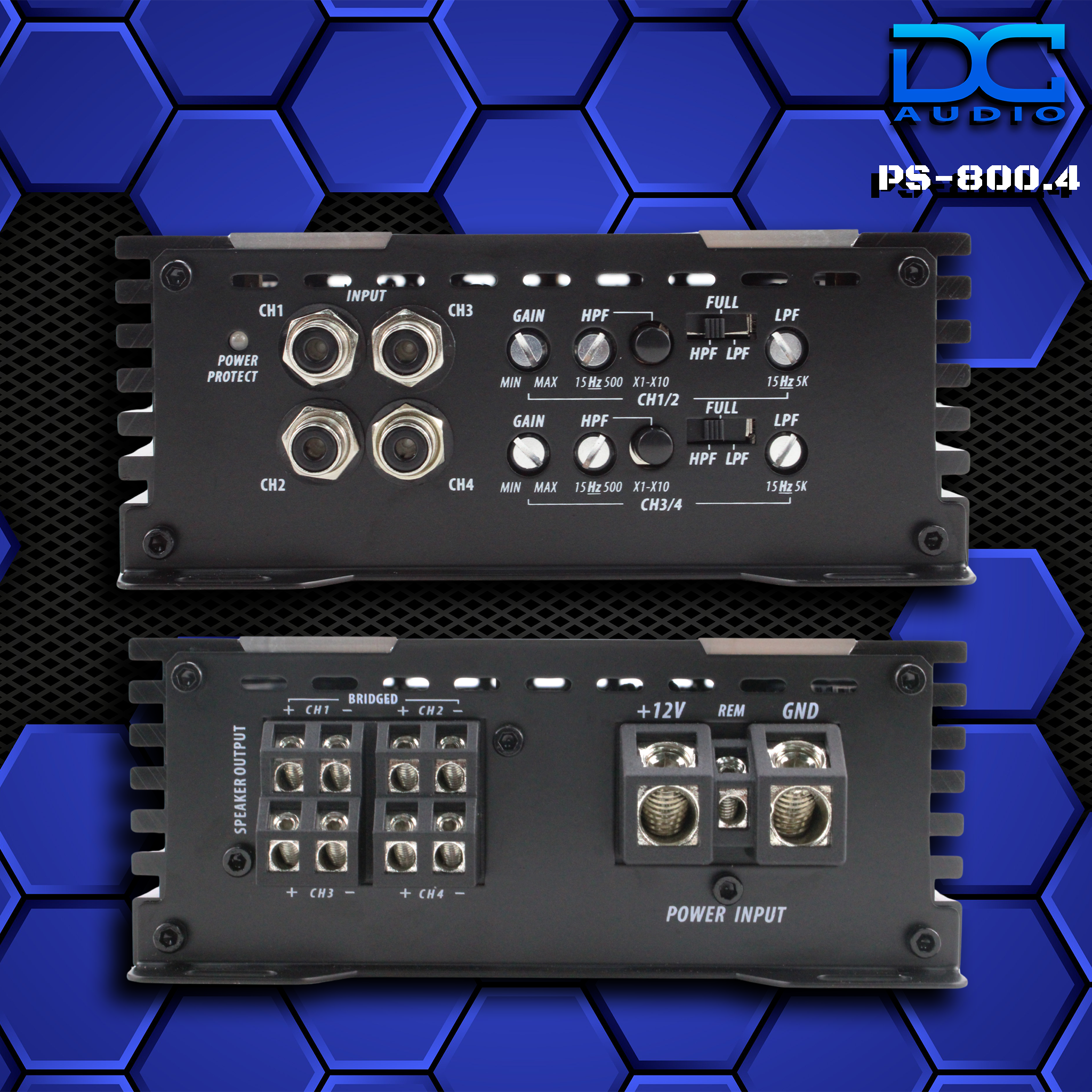

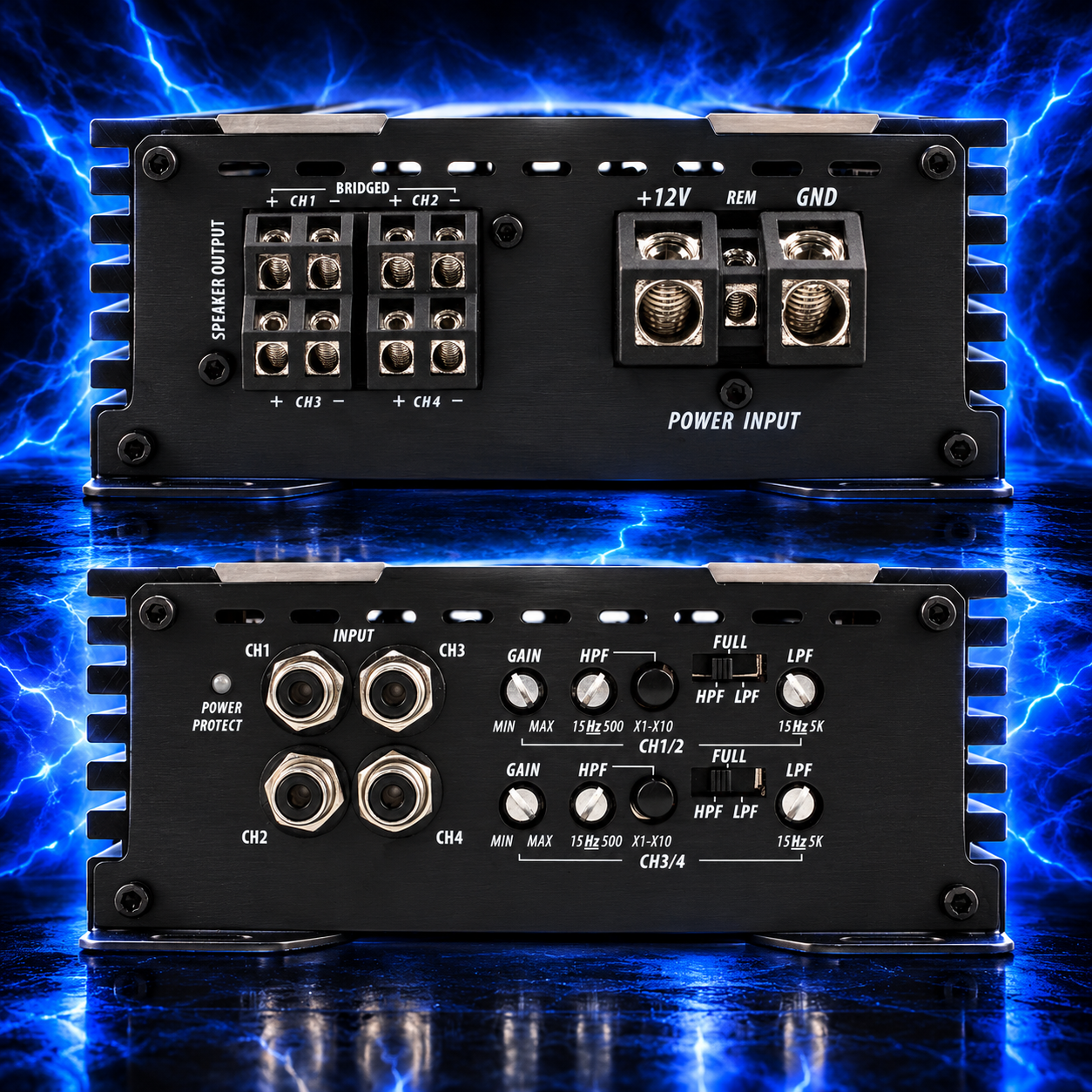

The DC-PS800x4 is a compact series full range 4 channel class D amplifier capable of making 800 watts. It has 4awg inputs and can be ran 4 ohms per channel, 2 ohms per channel or bridged at 4ohms. The Crossover network is what makes this one really shine, A section for channels 1/2 and 3/4 including Gain, HPF, LPF, Full Range AND a x10 switch to be able to active run your highs.
Output Power (RMS)
4 ohm 130Wx4 @ 14.4 Volts
2 ohm 220Wx4 @ 14.4 Volts
4ohm rms bridged power : 450W x 2
Key Features
4 ohm bridged stable
2 ohm stereo stable
Variable low pass filter
Variable High pass filter
Full Range Output
9-16.0 Volts Capable
x10 Crossover Switches
Tiffany Style RCA Jacks
Power / Protect LED
This amp rack allows you to stack a pair of PS800.4’s

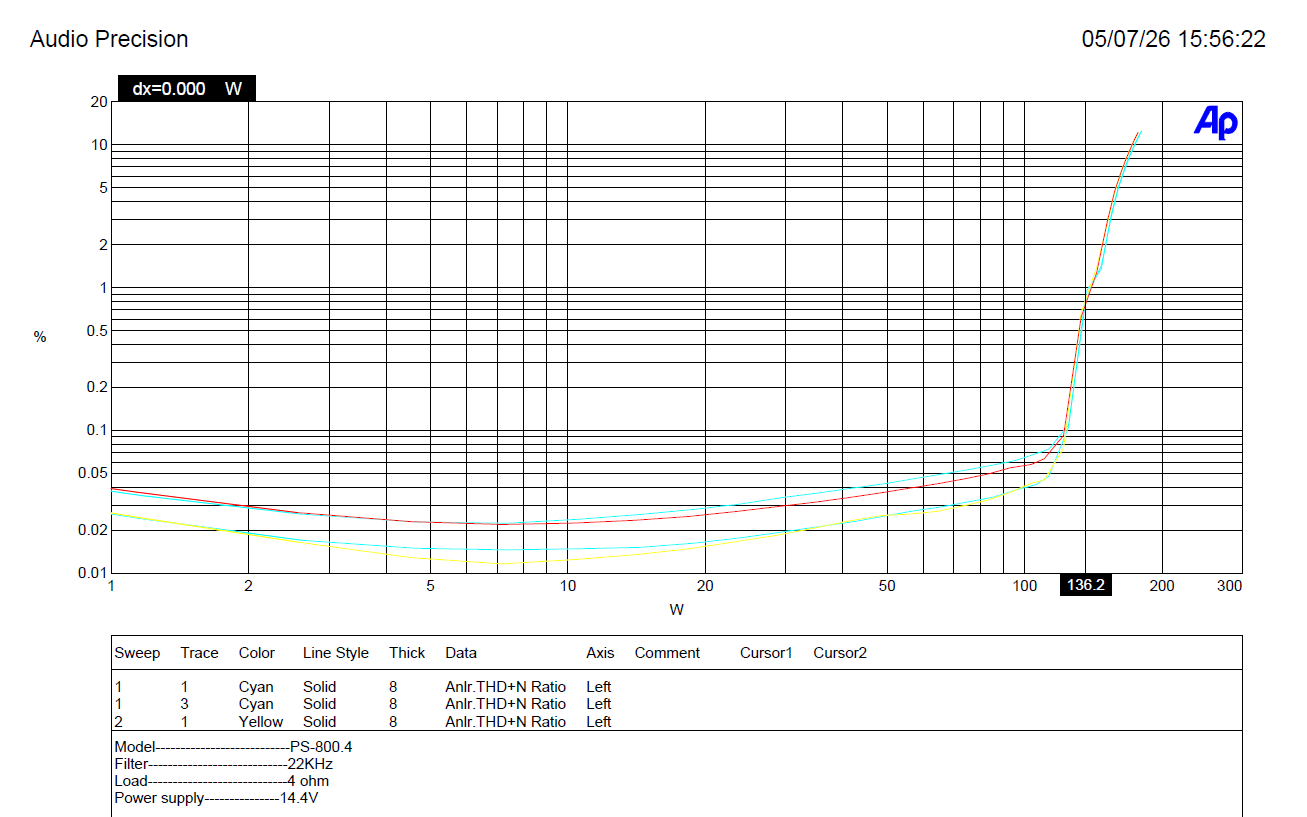

4 Ohm Per Channel

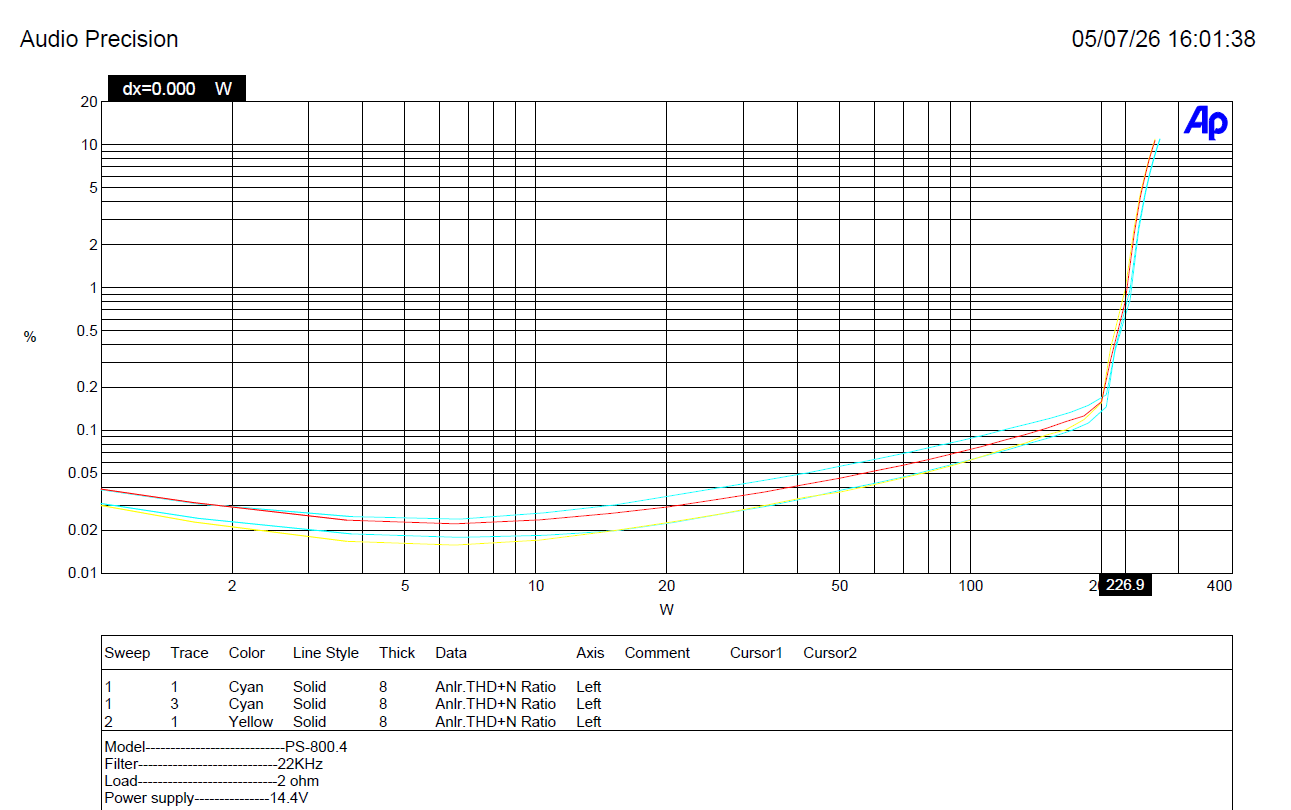

2 Ohm Per Channel

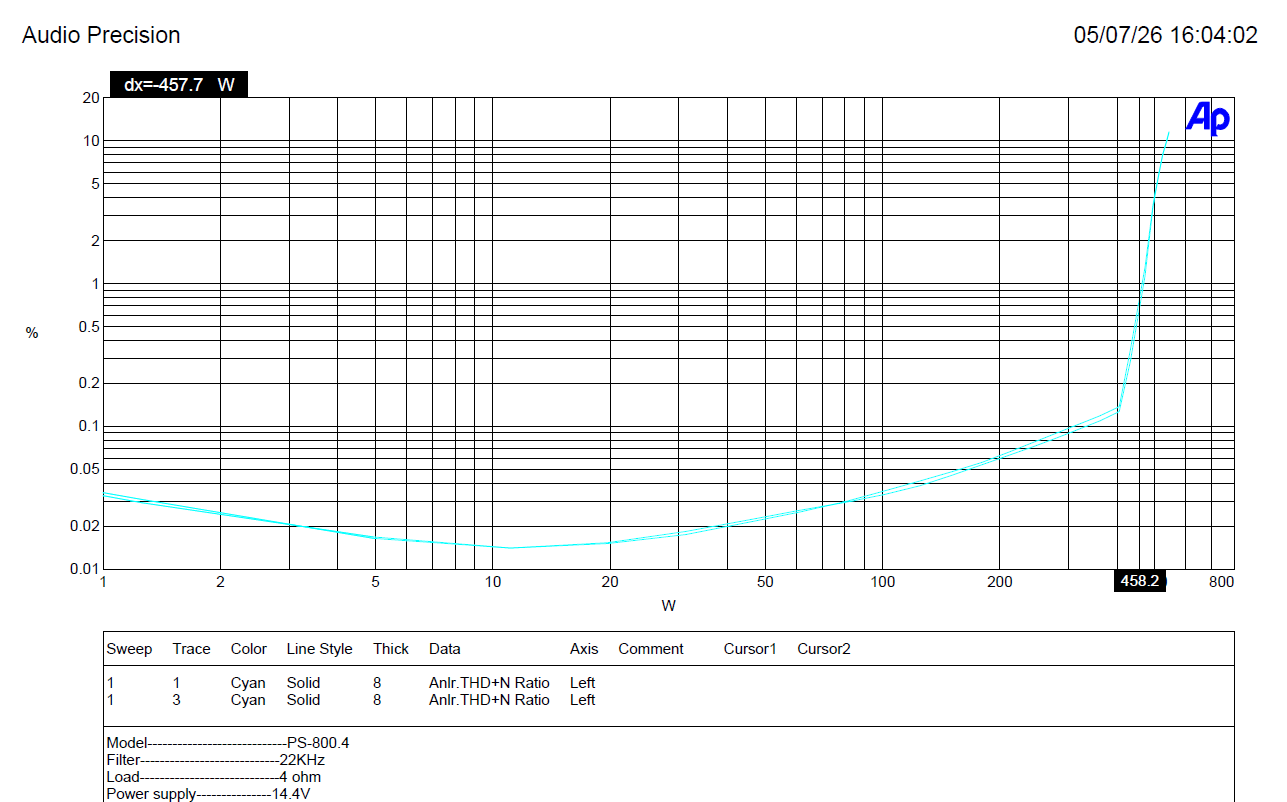

4 Ohm Bridged
AMP SPECS:
| DC Amp Model: | PS-800x4 |
|---|---|
| Input Sensitivity | 8V~0.4V |
| Frequency Response | 10Hz~30KHz |
| 12dB / Octave Crossover | YES |
| High / Low Pass | 50Hz ~ 500Hz |
| Subsonic Filter | NO |
| Bass Boost @45hz | NO |
| Phase Shift | NO |
| Remote Control | NO |
| Clip Indicator | No |
| Signal to Noise Ratio | 90dB |
| Damping Factor | 100< |
| THD @ 4ohms | Less than 1% |
| Fuse Rating | External 80 amp |
| LED Status Lights | Power/Protect |
| Master/Slave | NO |

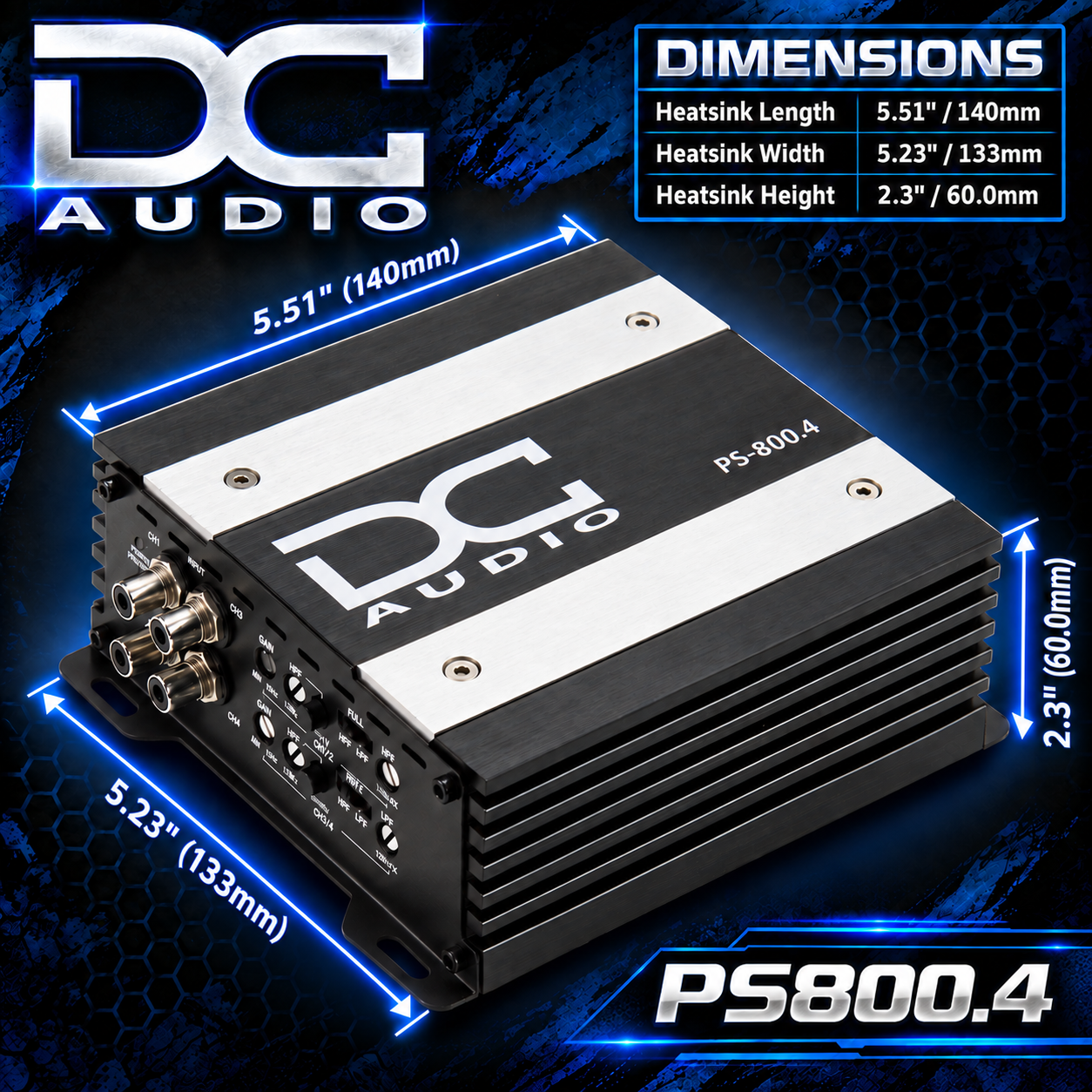

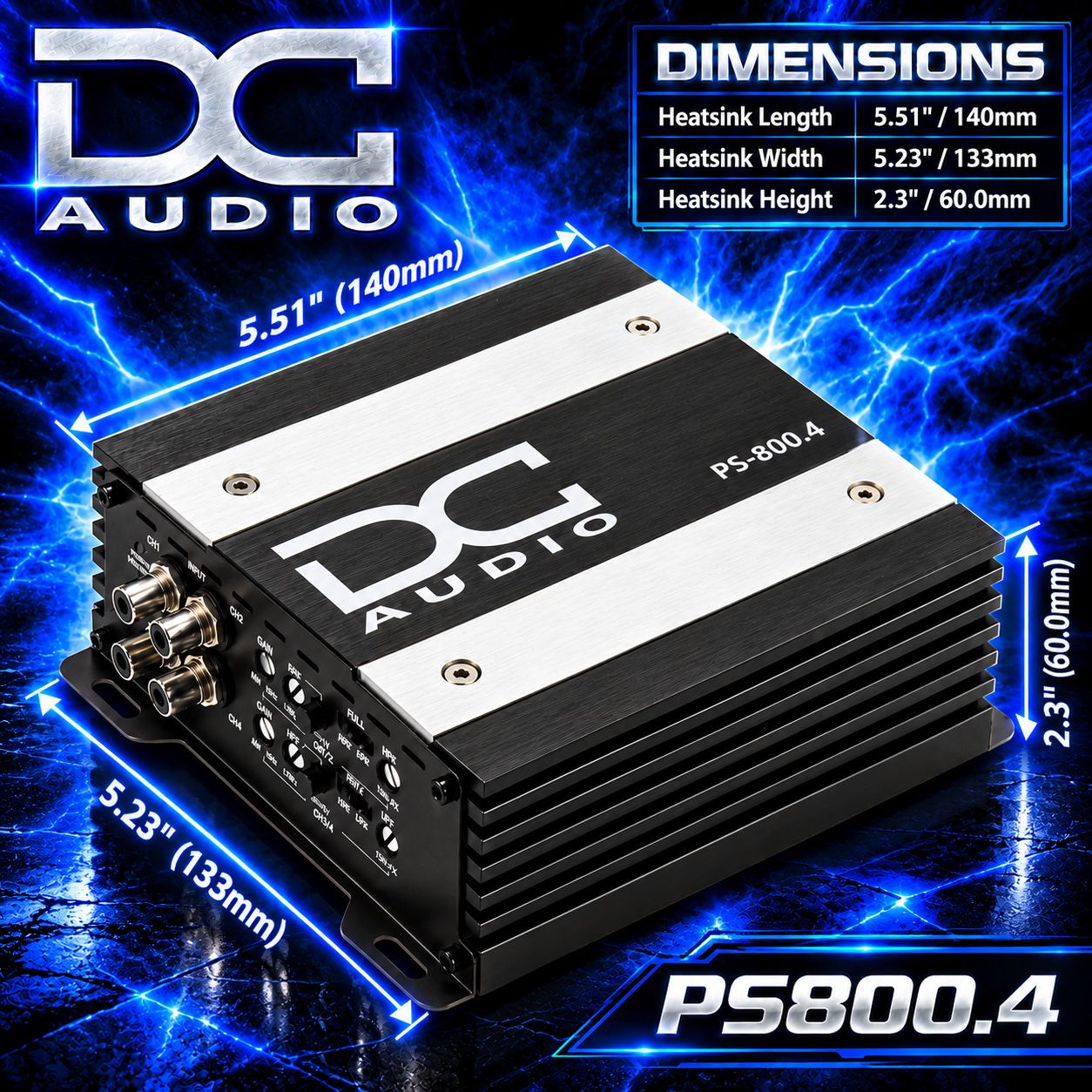

| Heatsink Length | 5.51"/140mm |
| Heatsink Width | 5.23"/133mm |
| Heatsink Height | 2.3"/60.0mm |
Overview Video
Check out what the DC-PS800x4 Mini Amplifier from DC Audio is all about
