Amplifier Description

The DC-PS1200x4 is a compact series full range 4 channel class D amplifier capable of making 1,200 watts. It has 4awg inputs and can be ran 4 ohms per channel, 2 ohms per channel or bridged at 4ohms. The Crossover network is what makes this one really shine, A section for channels 1/2 and 3/4 including Gain, HPF, LPF, Full Range AND a x10 switch to be able to active run your highs.

Output Power (RMS)

4 ohm 190Wx4 @ 14.4 Volts

2 ohm 300Wx4 @ 14.4 Volts

4ohm rms bridged power : 600W x 2

Key Features

4 ohm bridged stable

2 ohm stereo stable

Variable low pass filter

Variable High pass filter

Full Range Output

9-16.5 Volts Capable

x10 Crossover Switches

Tiffany Style RCA Jacks

Power / Protect LED

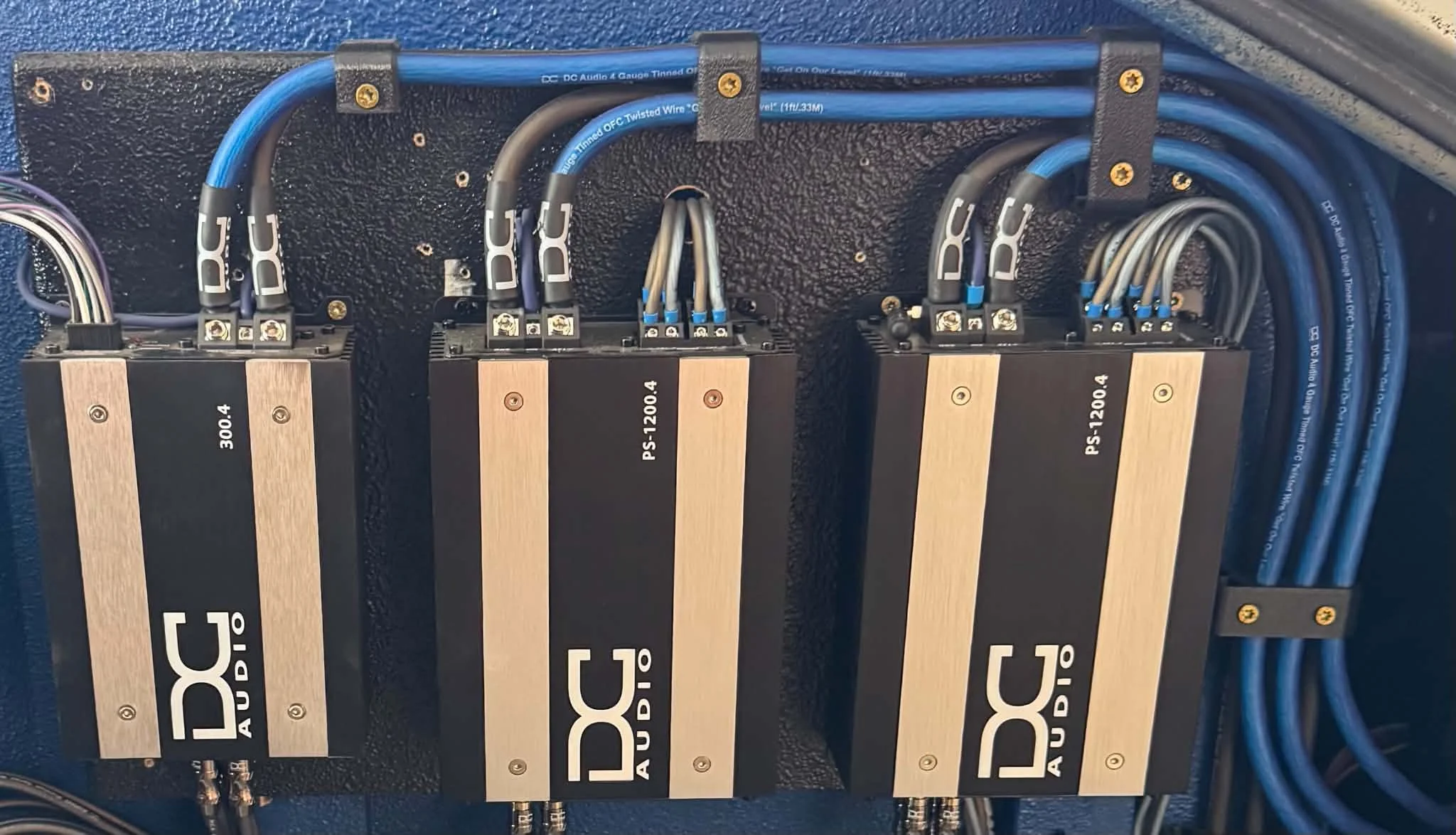

This amp rack allows you to stack a pair of PS1200.4’s

AMP SPECS:

    DC Amp Model:
    PS-1200x4

    Input Sensitivity
    4V~0.4V

    Frequency Response
    10Hz~20KHz

    12dB / Octave Crossover
    YES

    High / Low Pass
    50Hz ~ 500Hz

    Subsonic Filter
    NO

    Bass Boost @45hz
    NO

    Phase Shift
    NO

    Remote Control
    NO

    Clip Indicator
    No

    Signal to Noise Ratio
    90dB

    Damping Factor
    90<

    THD @ 4ohms
    Less than 1%

    Fuse Rating
    External 100 amp

    LED Status Lights
    Power/Protect

    Master/Slave
    NO

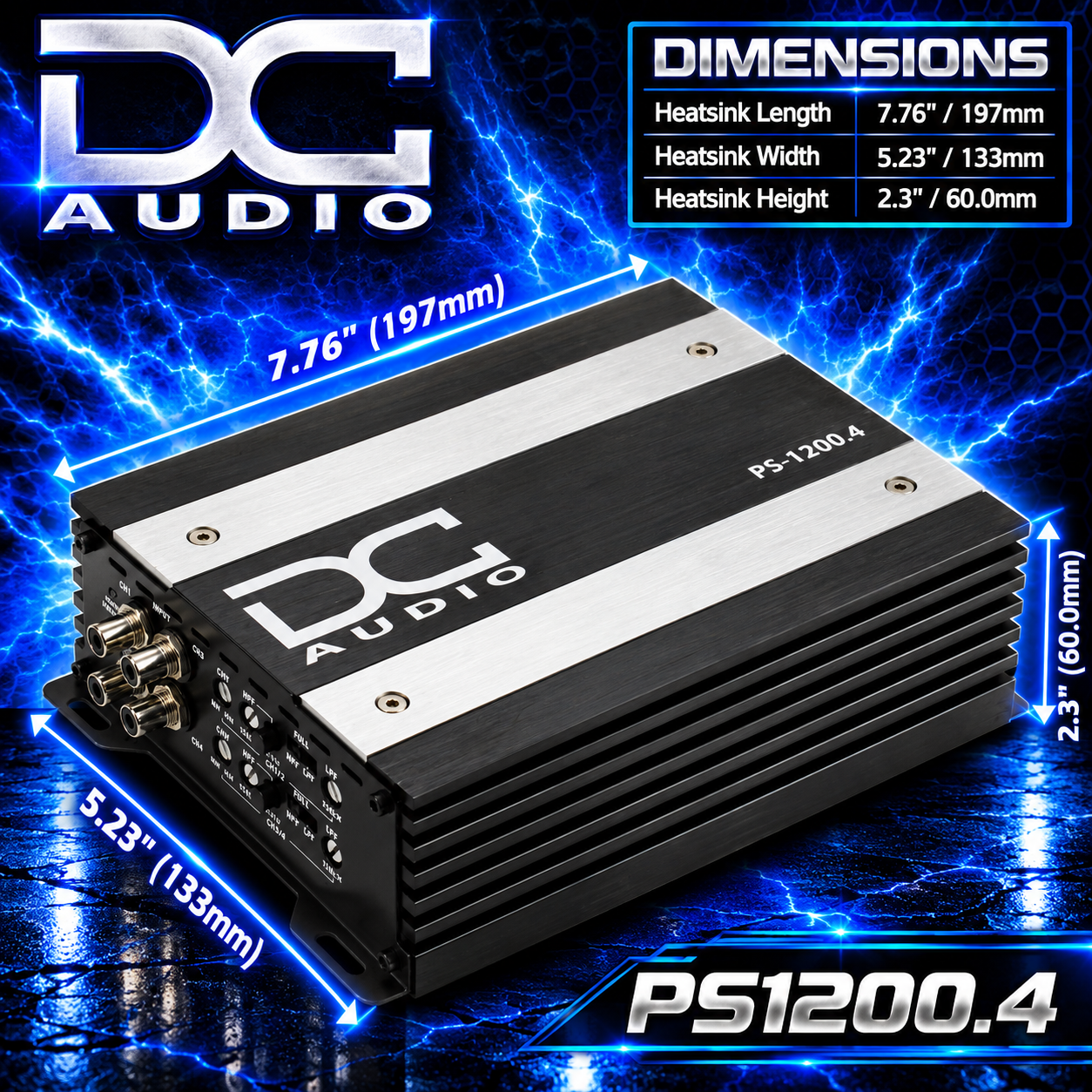

    Heatsink Length
    7.76"/197mm

    Heatsink Width
    5.23"/133mm

    Heatsink Height
    2.3"/60.0mm
