Amplifier Description

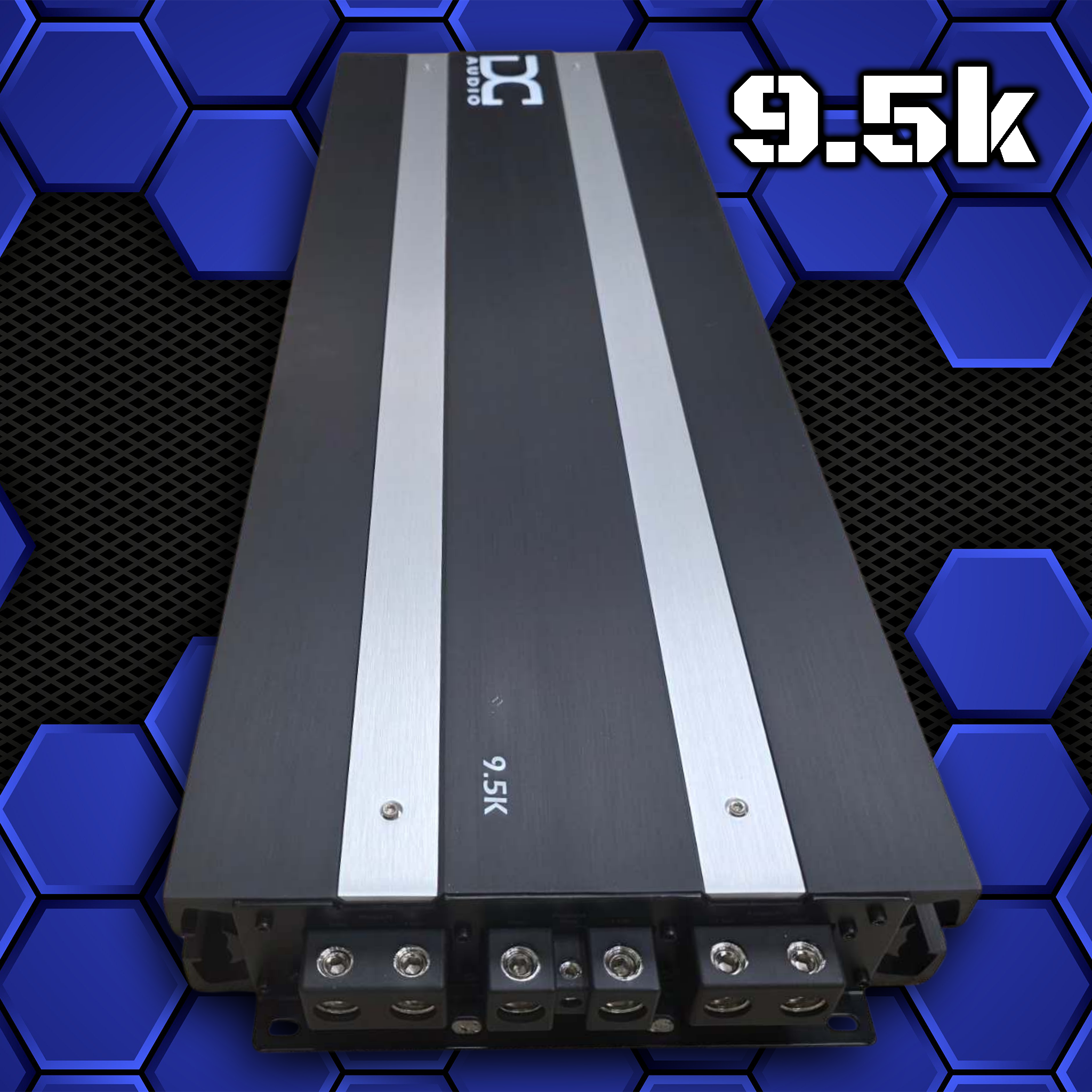

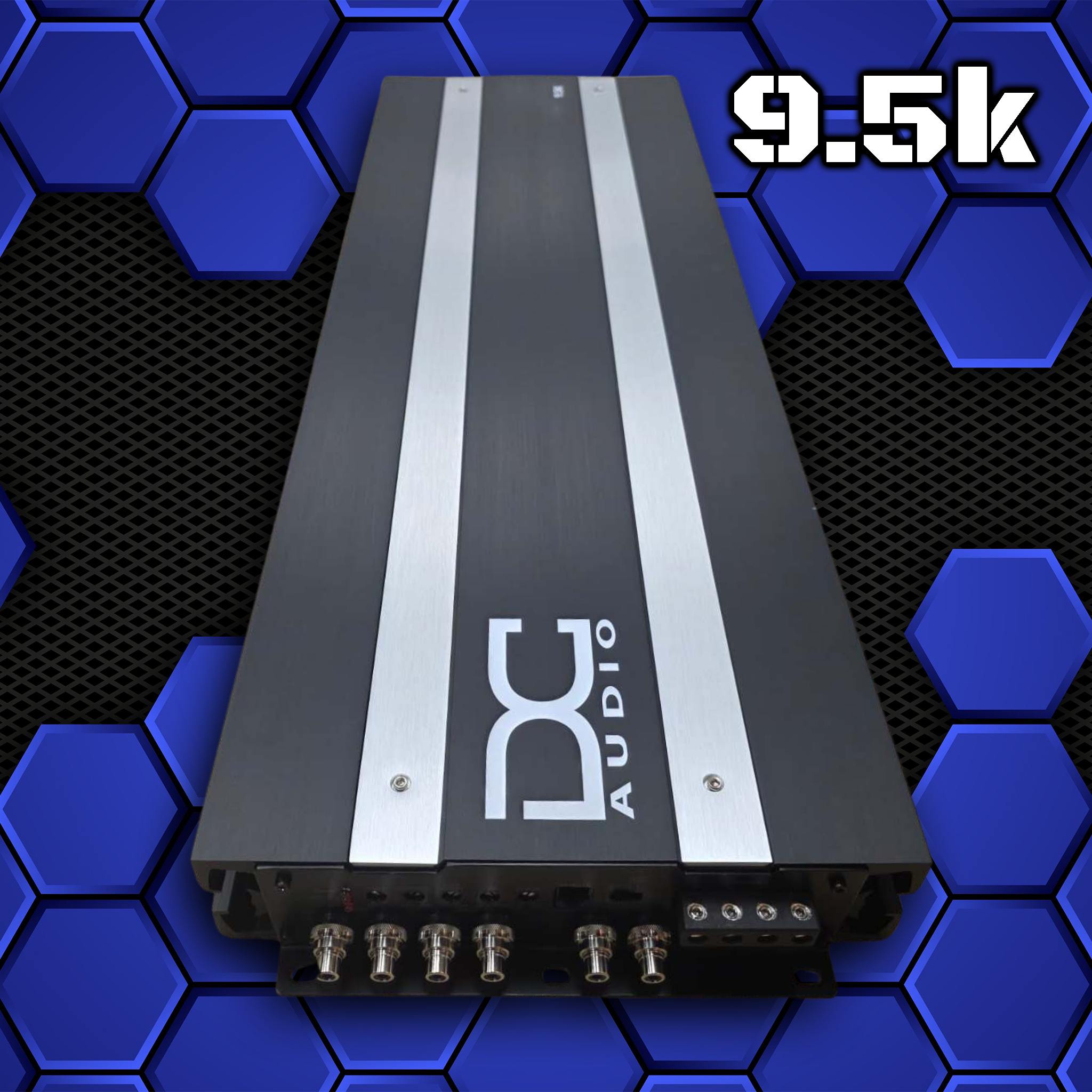

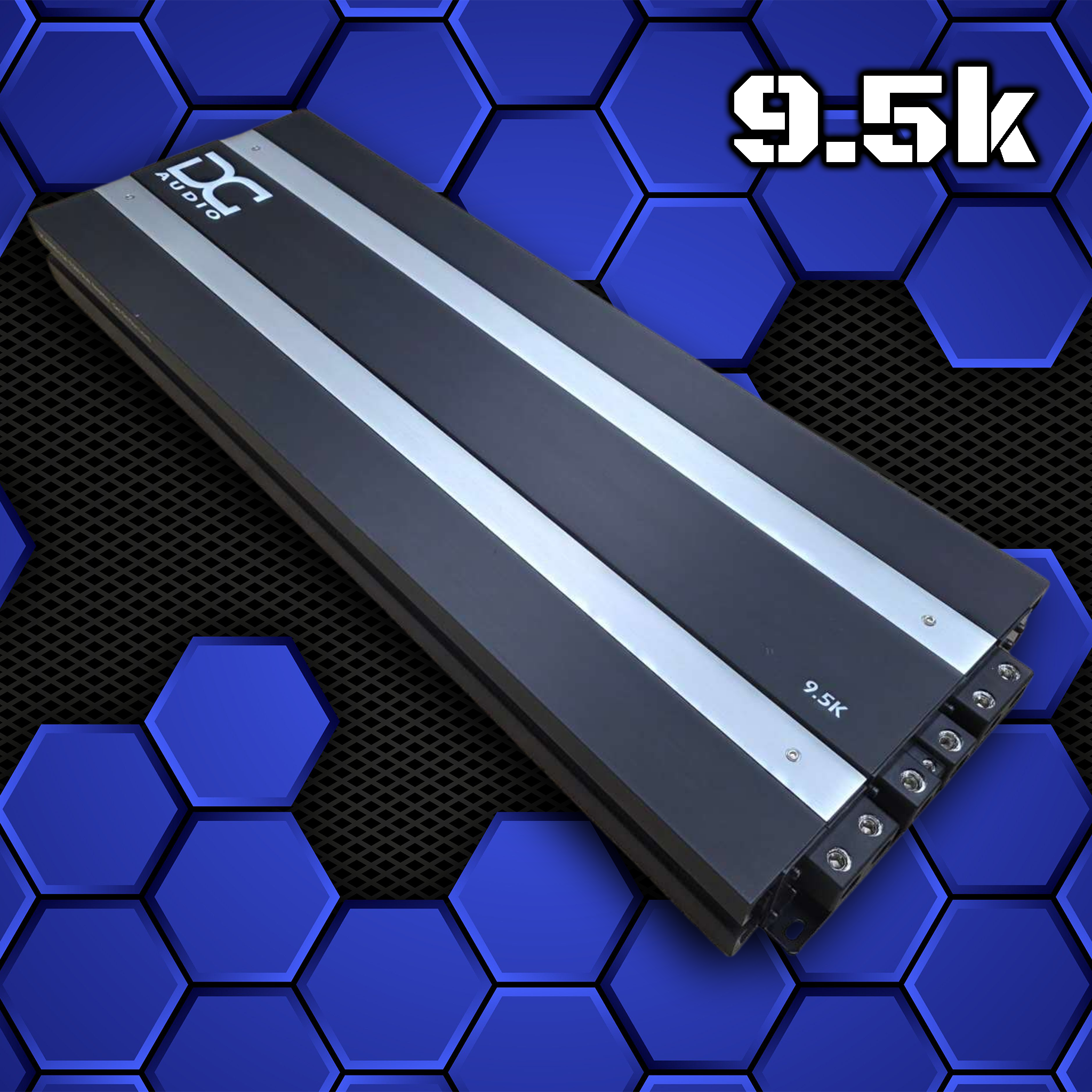

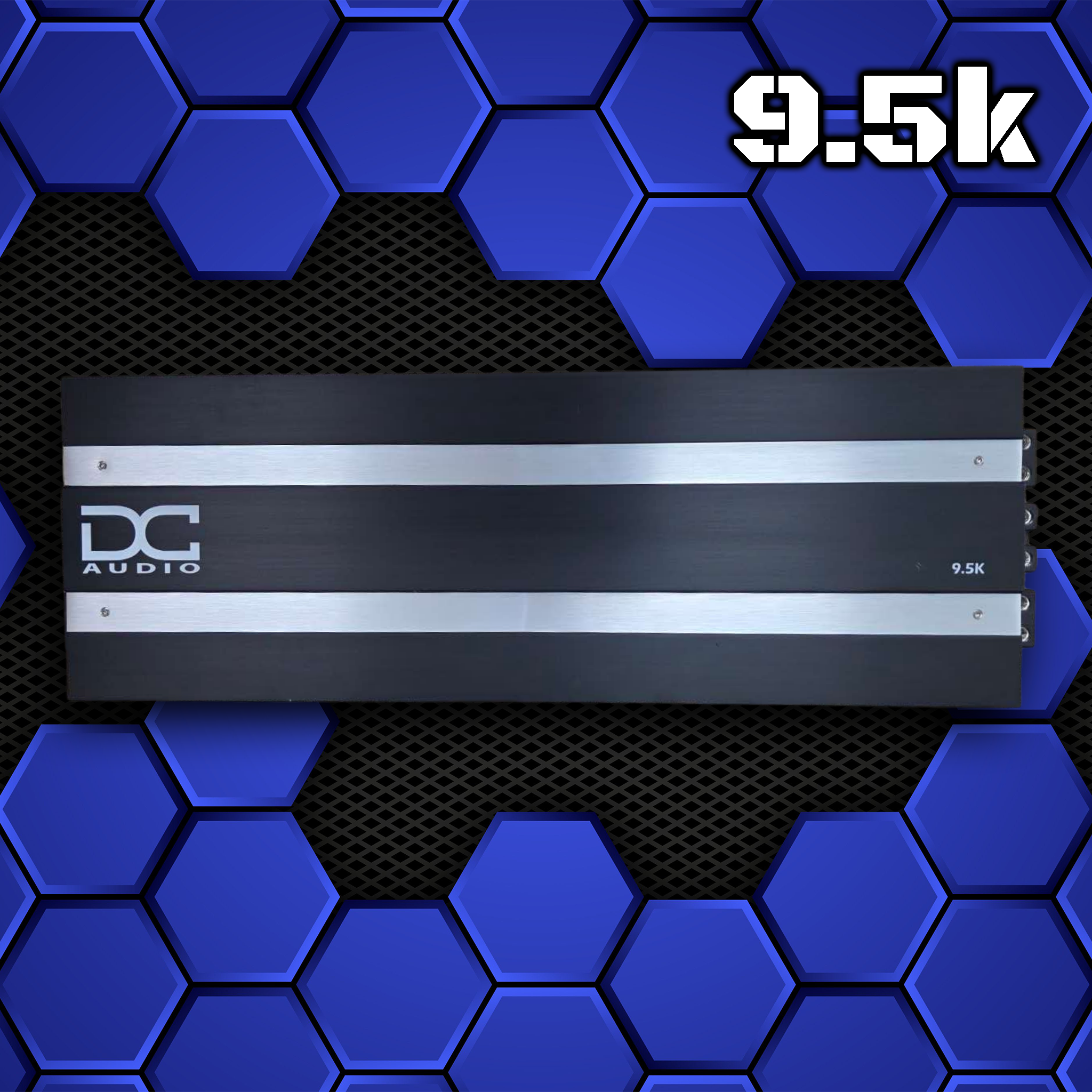

The 9.5kw competition series amplifier is a 9,500 @14.4 vdc watt mono block. It’s a linkable amp and designed to run at 1 ohm per amp or 2 ohms when strapped.

It comes with a bass knob and clip light. For power inputs it will accept triple 0 awg for power and triple 0 awg for ground.

Output Power (RMS)

3,900x1 @ 4 ohms 14.4 volts

6,800x1 @ 2 ohms 14.4 volts

9,500x1 @ 1 ohms 14.4 volts

12,000x1 @ 1 ohm 16.0 volts

19,000x1 @ 2 ohm 14.4 volts LINKED

24,000x1 @ 2 ohm 16.0 volts LINKED

Max Charge Voltage 16.2 volts

Key Features

• 1 ohm stable

• Variable low pass filter

• Variable subsonic filter

• Variable bass boost

• Wired Bass Knob remote control

• RCA Pass Thru

• Linkable

• Triple 0 Awg Power Ground Inputs

Recommended for installation :

2 Upgraded Alternators or 350 amps of charging power

Upgraded under hood Battery

1000ah of AGM Batteries in the trunk or 140ah Lithium

Dash mounted voltage meter

0 Awg OFC power and ground

Power & ground runs from front to back batteries.

DO NOT mount to subwoofer box. (will void warranty)
